MPIC Validator

ENTERPRISE

The MPIC Validator allows a Multi-Perspective Issuance Corroboration, to facilitate Certificate Authority Authorization (CAA) from multiple network perspectives. The MPIC Validator is based on the specification for the Open MPIC Protocol, see Open Multi-Perspective Issuance Corroboration APIv2 Spec.

MPIC proposes a safer alternative to single perspective validation which might be vulnerable to DNS and BGP hijacks, MPIC allows corroboration of CAA validation over different network perspectives on different locations.

TLS Validation

A typical CAA record has the following format:

Command:

CODE
dig caa example.com

Response:

CODE
example.com. 243	IN	CAA	0 issue "ca.org"

For an MPIC request, this same record to a server configured to have two network perspectives, one in the US and one in Europe, would show as follows:

Request:

CODE
curl --location 'https://hbaac12yh8.execute-api.eu-west-1.amazonaws.com/v1/mpic' \
--header 'Content-Type: application/json' \
--header 'x-api-key: ••••••' \
--data '{
  "check_type": "caa",
  "domain_or_ip_target": "example.com"
}'

Response:

CODE
{
    "request_orchestration_parameters": null,
    "actual_orchestration_parameters": {
        "perspective_count": 2,
        "quorum_count": 1,
        "attempt_count": 1
    },
    "is_valid": true,
    "check_type": "caa",
    "perspectives": [
        {
            "perspective_code": "eu-west-1",
            "check_passed": true,
            "errors": null,
            "timestamp_ns": 1736247778402104091,
            "check_type": "caa",
            "details": {
                "caa_record_present": true,
                "found_at": "example.com",
                "response": "example.com. 243 IN CAA 0 issue \"ca.org\""
            }
        },
        {
            "perspective_code": "us-west-1",
            "check_passed": true,
            "errors": null,
            "timestamp_ns": 1736247778485125494,
            "check_type": "caa",
            "details": {
                "caa_record_present": true,
                "found_at": "example.com",
                "response": "example.com. 243 IN CAA 0 issue \"ca.org\""
            }
        }
    ],
    "caa_check_parameters": null
}

For this example the response includes a convenient flag is_valid meaning that for both of the perspectives the ca.org is allowed to issue example.com certificates. And by observing the response we can conclude that the CAA query result is the same if done both in Europe and US. Note that this is an example with two perspectives and the recommended number of perspectives for a secure query is six.

S/MIME Validation

CA/B Forum specifies the criteria for allowing or rejecting an S/MIME certificate request based on a performed CAA check defined in the S/MIME Base Requirements document.

A typical S/MIME CAA record has the following format:

CODE
example.com. 243	IN	CAA	0 issuemail "ca.org"

For MPIC, a request would look as follows:

Request:

CODE
curl --location 'https://hbaac12yh8.execute-api.eu-west-1.amazonaws.com/v1/mpic' \
--header 'Content-Type: application/json' \
--header 'x-api-key: hOKwU4aytI3npWJ6CdbKGFNhiwTsucZaxubTCD45' \
--data '{
  "check_type": "caa",
  "domain_or_ip_target": "example.com",
  "caa_check_parameters" : {
    "certificate_type": "s-mime"
  }
}'

Response:

CODE
{
    "request_orchestration_parameters": null,
    "actual_orchestration_parameters": {
        "perspective_count": 2,
        "quorum_count": 1,
        "attempt_count": 1
    },
    "is_valid": true,
    "check_type": "caa",
    "perspectives": [
        {
            "perspective_code": "eu-west-1",
            "check_passed": true,
            "errors": null,
            "timestamp_ns": 1736247778402104091,
            "check_type": "caa",
            "details": {
                "caa_record_present": true,
                "found_at": "example.com",
                "response": "example.com. 300 IN CAA 0 issuemail \"ca.org\""
            }
        },
        {
            "perspective_code": "us-west-1",
            "check_passed": true,
            "errors": null,
            "timestamp_ns": 1736247778485125494,
            "check_type": "caa",
            "details": {
                "caa_record_present": true,
                "found_at": "example.com",
                "response": "example.com. 300 IN CAA 0 issuemail \"ca.org\""
            }
        }
    ],
    "caa_check_parameters": {
        "certificate_type": "s-mime",
        "caa_domains": [
            "example.com"
        ]
    }
}

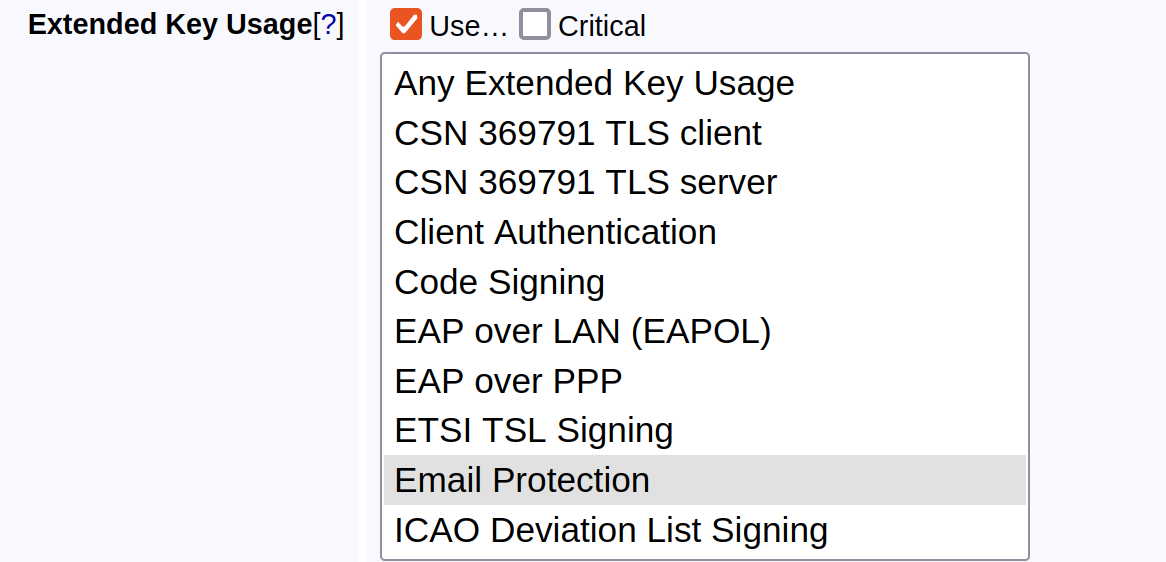

To enable this type of validation, in addition to creating the MPIC validator, the certificate profile field Extended Key Usage option Email protection must be selected within the certificate profile.

When using an MPIC Validator, you must select either Email Protection or Server Authentication in the certificate profile, but not both.

Configure MPIC Validator

Issuance Phase

Different validators are run at different phases of the issuance process. The MPIC Validator can only be run during the data phase. For descriptions of the different issuance phases, see Validators Overview.

Fields

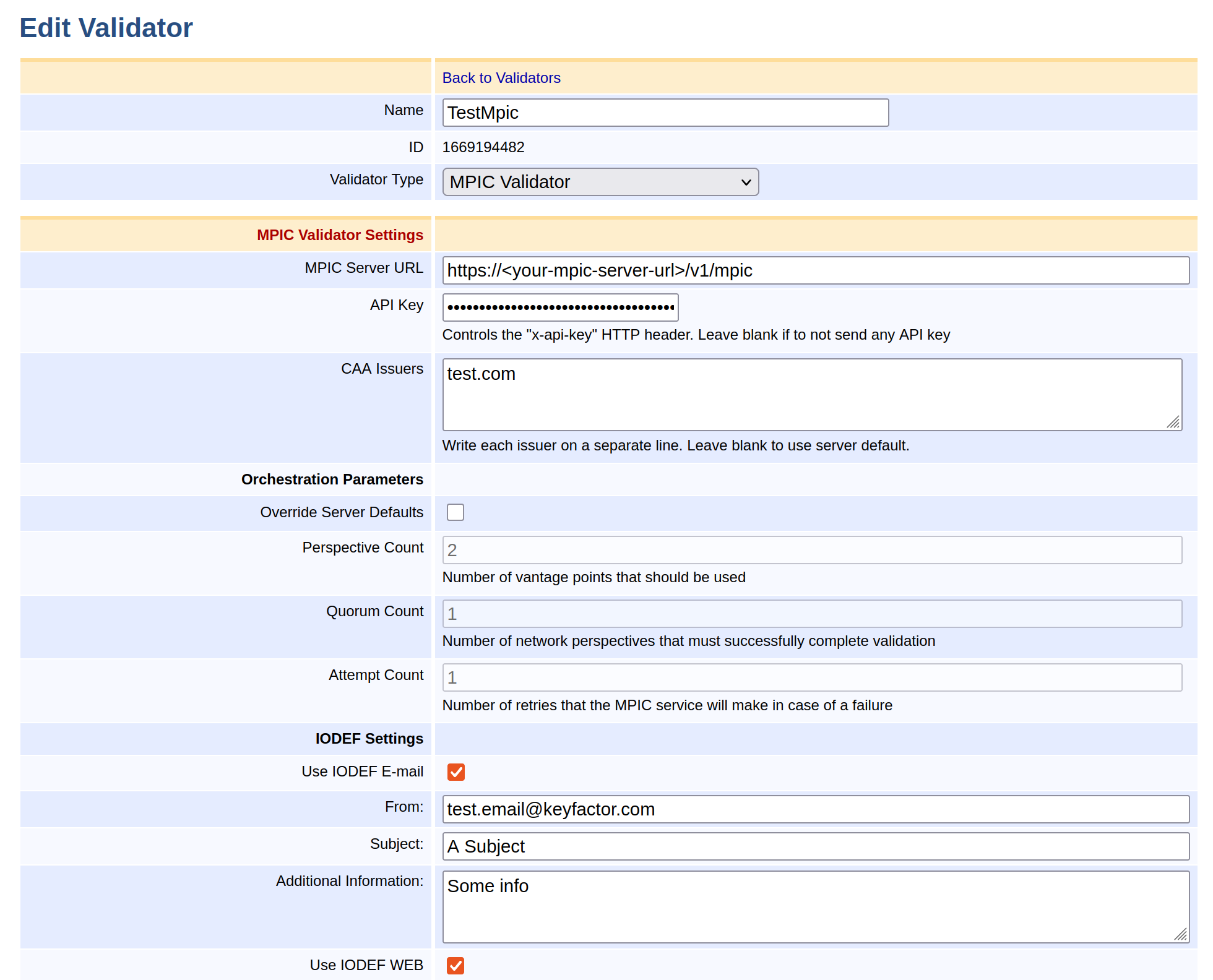

The following displays the MPIC Validator settings.


EJBCA allows the administrator to configure the following when setting up a CAA Validator:

Field Name

Description

MPIC Server URL

The MPIC server URL.

API Key

The API Key to be sent in the x-api-key header.

CAA Issuers

This value should match the value field in the CAA record of the DNS.

Override Server Defaults

Select to override the default configuration for Perspective, Quorum, and Attempt counts.

Perspective Count

The number of vantage points to use in the requests. Allows the implementing API endpoint flexibility in picking vantage points so long as vantage points are picked from at least two different Regional Internet Registry service regions if possible.

Quorum Count

The number of network perspectives that must successfully complete the the validation methods specified. As long as this value is greater than 2, the API will enforce that successful network perspectives must be spread across two Regional Internet Registry service regions

Attempt Count

The number of times validation or CAA checks has been retried to get the result of a single API POST request.

IODEF Settings

Use IODEF E-mail

Select to enable sending e-mails to any mailto-links registered on the DNS as CAA IODEF records.

From

The From field in the resulting e-mail.

Subject

The Subject line in the resulting e-mail.

Additional Information

Any additional information required, in addition to the following default message which will be appended at the end:

A faulty Certificate Request was made for the domain 'http://example.com ' for the issuer http://ca.com  which was rejected by the CA due to the issuer not having a CAA record on the domain's DNS.

Use IODEF WEB

Enables sending IODEF incident reports to any http/s-links registered on the DNS as CAA IODEF records.

MPIC Validator Logging

The MPIC validator logs both success and failure. Since success can be considered a security event, to be shown as evidence, this is logged in the security audit log. Failures are not security events per se and logged to the standard server log at info level.

Example failure:

CODE
10:29:09,060 INFO  [org.ejbca.core.model.validation.MpicValidator] (default task-6) MPIC CAA validation failed for domain 'test.globalsign.com' with type 'tls-server'. JSON response from MPIC server: {"request_orchestration_parameters":null,"actual_orchestration_parameters":{"attempt_count":1,"perspective_count":2,"quorum_count":1},"perspectives":[{"check_passed":false,"check_type":"caa","details":{"response":"globalsign.com. 300 IN CAA 0 issuemail \"globalsign.com\"\nglobalsign.com. 300 IN CAA 0 iodef \"mailto:report-abuse@globalsign.com\"\nglobalsign.com. 300 IN CAA 0 issue \"globalsign.com\"\nglobalsign.com. 300 IN CAA 0 issue \"letsencrypt.org\"","caa_record_present":true,"found_at":"globalsign.com"},"perspective_code":"eu-west-1","timestamp_ns":1736238548872449850,"errors":null},{"check_passed":false,"check_type":"caa","details":{"response":"globalsign.com. 300 IN CAA 0 iodef \"mailto:report-abuse@globalsign.com\"\nglobalsign.com. 300 IN CAA 0 issue \"globalsign.com\"\nglobalsign.com. 300 IN CAA 0 issue \"letsencrypt.org\"\nglobalsign.com. 300 IN CAA 0 issuemail \"globalsign.com\"","caa_record_present":true,"found_at":"globalsign.com"},"perspective_code":"us-west-1","timestamp_ns":1736238548832234721,"errors":null}],"is_valid":false,"check_type":"caa","caa_check_parameters":{"caa_domains":null,"certificate_type":"tls-server"}}

Example success:

CODE
15:30:41,883 INFO  [org.cesecore.audit.impl.log4j.Log4jDevice] (default task-9) 2025-01-07 15:30:41+02:00;VALIDATOR_VALIDATION_SUCCESS;SUCCESS;VALIDATOR;CORE;CN=diegows;278366771;;atest123;msg=MPIC Validator 'TestMpic' has permitted issuance of certificates to issuer , with messages: [Allowed to issue for for domain 'test.google.com' with type 'tls-server'. JSON response from MPIC server: {"request_orchestration_parameters":null,"actual_orchestration_parameters":{"attempt_count":1,"perspective_count":2,"quorum_count":1},"perspectives":[{"check_passed":true,"check_type":"caa","details":{"response":"google.com. 47663 IN CAA 0 issue \"pki.goog\"","caa_record_present":true,"found_at":"google.com"},"perspective_code":"eu-west-1","timestamp_ns":1736256641635312259,"errors":null},{"check_passed":true,"check_type":"caa","details":{"response":"google.com. 86400 IN CAA 0 issue \"pki.goog\"","caa_record_present":true,"found_at":"google.com"},"perspective_code":"us-west-1","timestamp_ns":1736256641692320803,"errors":null}],"is_valid":true,"check_type":"caa","caa_check_parameters":{"caa_domains":null,"certificate_type":"tls-server"}}].

For more general information about validators and common validator settings, see the Validators Overview.
