Step 2: Create OCSP Keys in VA Hardware Appliance

Proceed as follows to create a crypto token and generate a public key in the VA Hardware Appliance. They will be used by OCSP to sign responses:

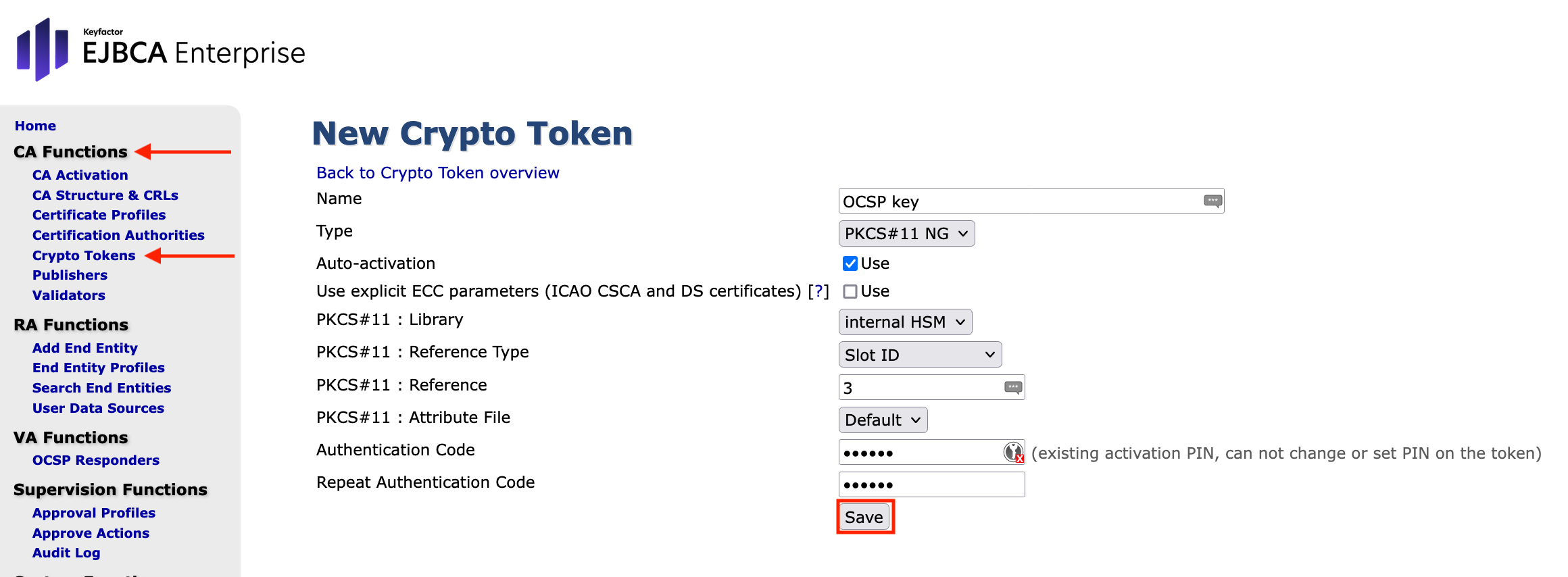

1. Go to the EJBCA Enterprise Administration

2. Open CA Functions > Crypto Tokens

3. Click Create New

4. Specify the following and click Save


   • Name: Enter OCSP key
   • Type: Select PKCS#11 NG

   • Auto-activation: Enable this option
   • Use explicit ECC parameters (ICAO CSCA and DS certificates): Disable this function

   • PKCS#11Library: Select Internal HSM
   • PKCS#11 ReferenceType: Select Slot ID
   • PKCS#11 Reference: Enter 3
   • PKCS#11 : Attribute File: Select Default

   • Authentication Code: Enter foo123 (the previously set password).
     Ensure that you have manually generated a slot password for the slot.
   • The index number depends on the installation.

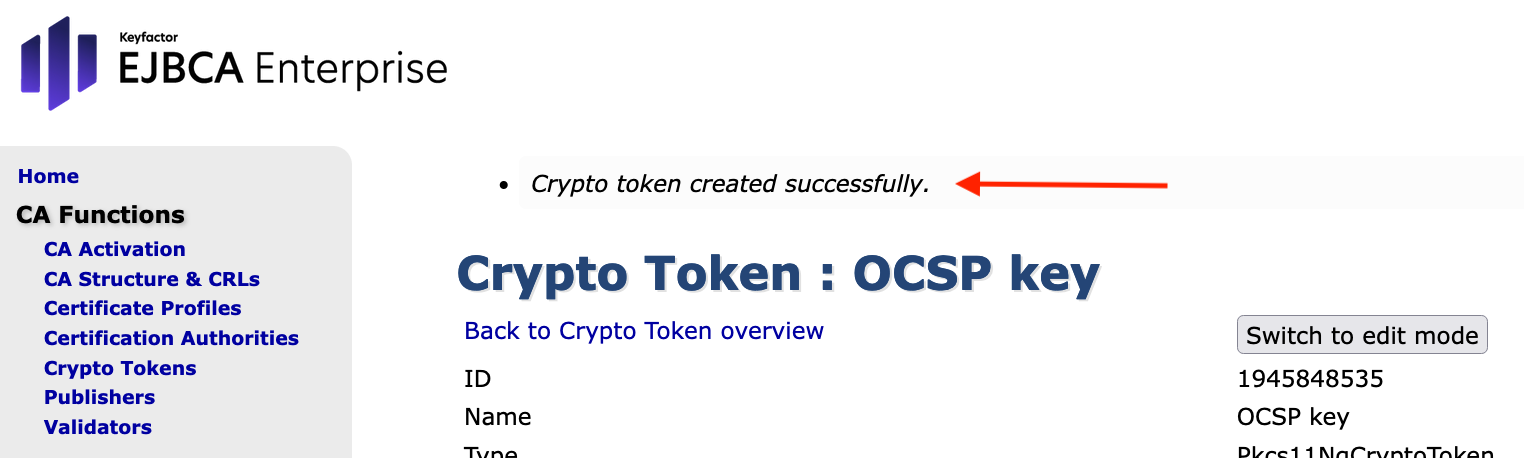

5. The Settings page displays the message CryptoToken created successfully.

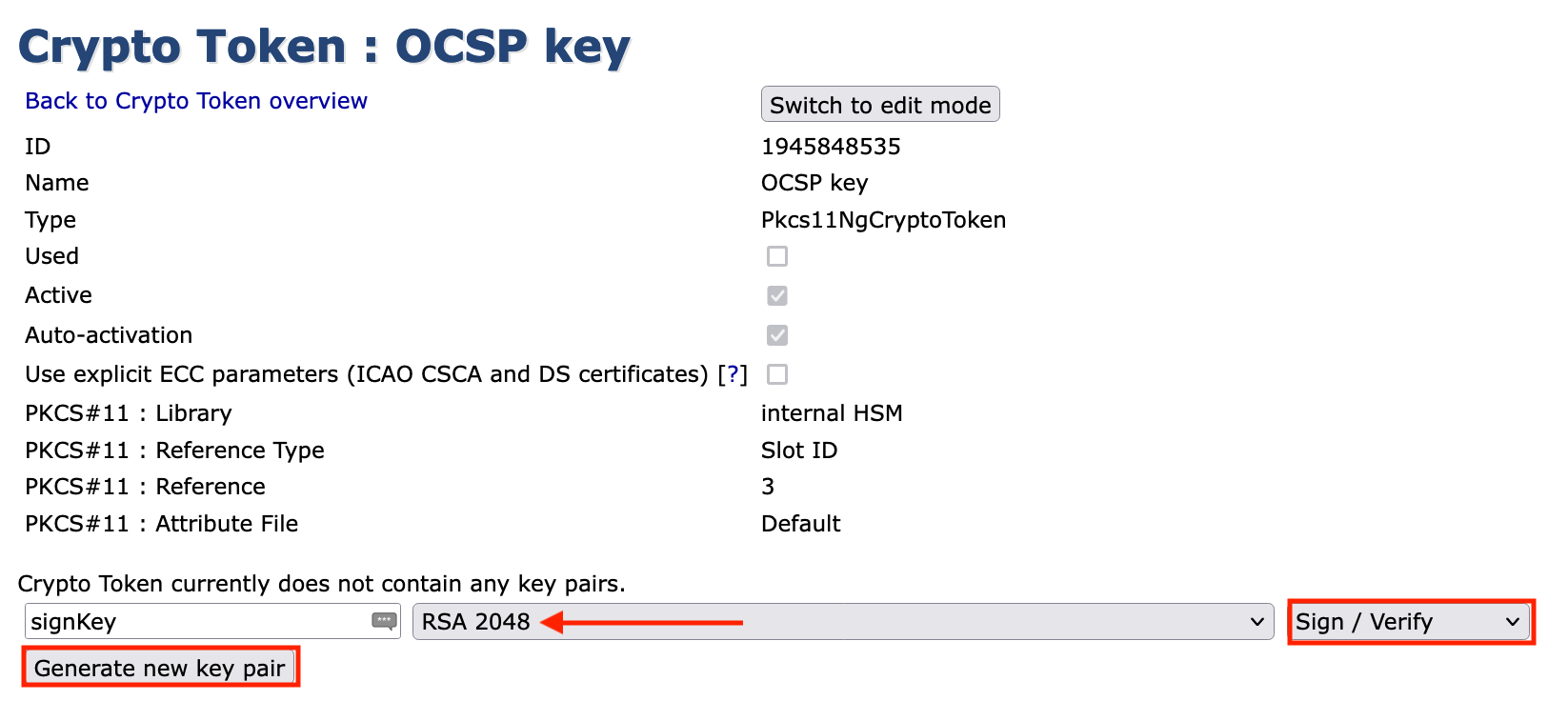

6. To create the key for signing OCSP responses, specify
   SignKey: RSA 2048 with the drop down function.

7. -Key Usage-: choose Sign / Verify from the drop down menu

8. Click Generate new key pair.

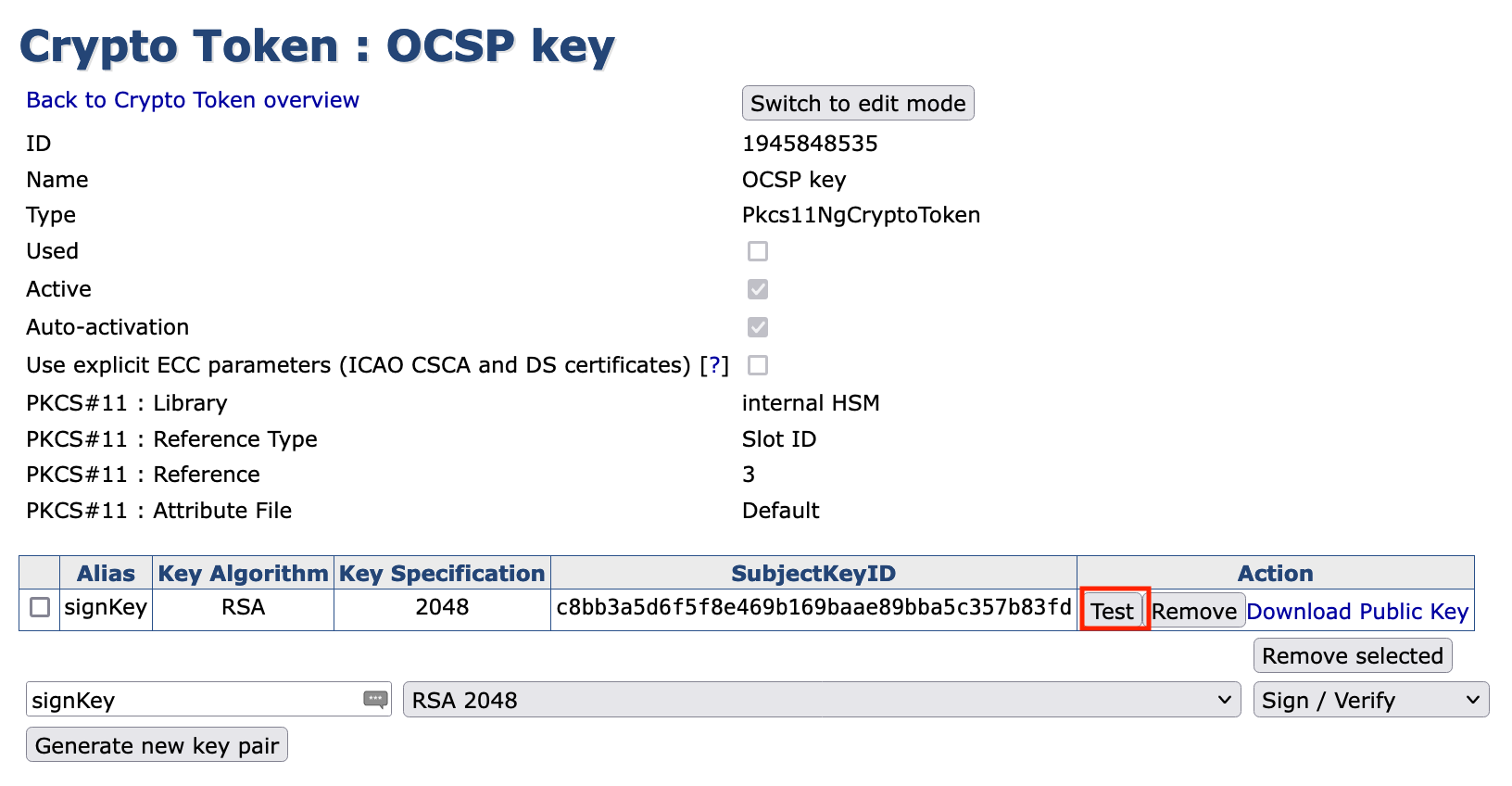

9. Click Test to test the key. If successful, the following message is displayed: signKey tested successfully.
