Overview

Scope of Delivery

The Next Generation Hardware Appliance package contains the following items:

1 Quality Assurance Test Report	The Next Generation Hardware Appliance Test Report lists the quality checks carried out. It is signed by authorized Keyfactor personnel.
1 Packing List
1 Next Generation Hardware Appliance

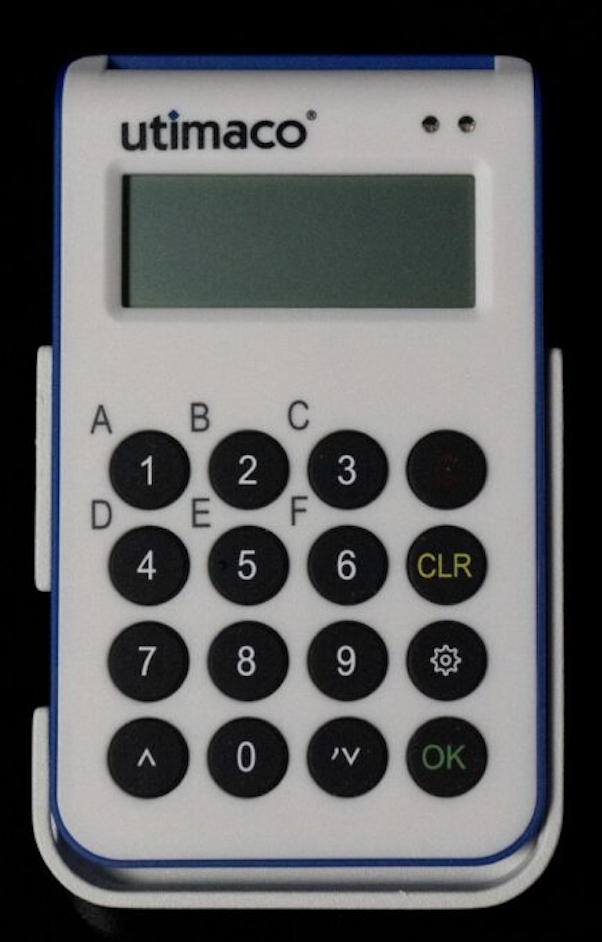

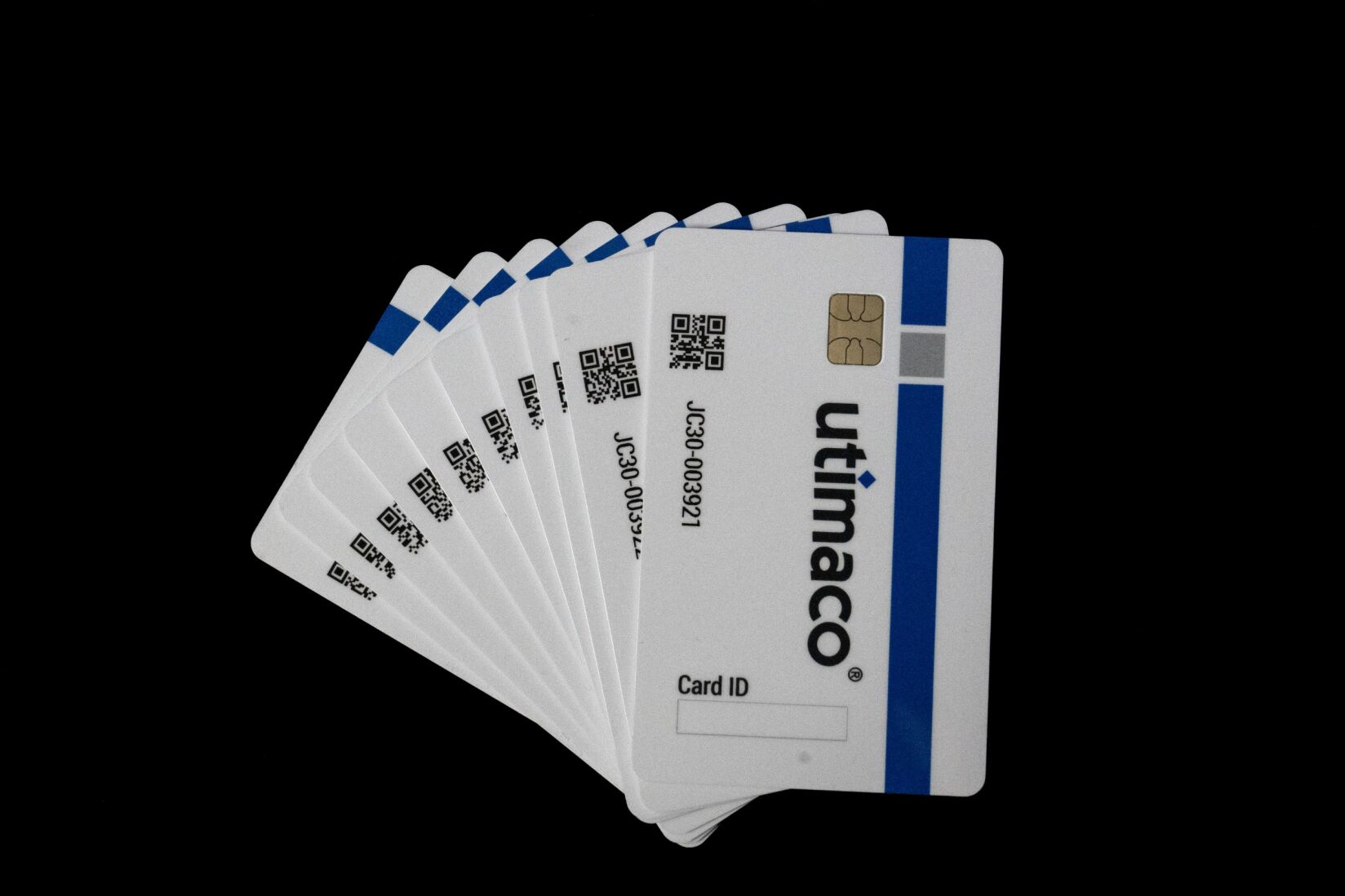

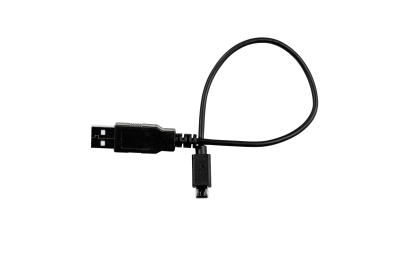

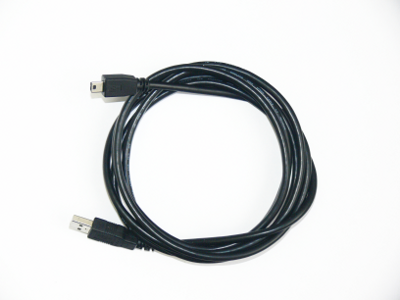

1 PINPad Smart Card Reader PinPad REINER SCT cyberJack One 1 USB A to Micro USB Cable (optional) 10 Smart Cards
1 External Battery Adapter (standard 6LR61/9 Volt block battery is not supplied). The pictures show the front and the back.
1 Set of Mounting Rails with screws and mounting instructions.

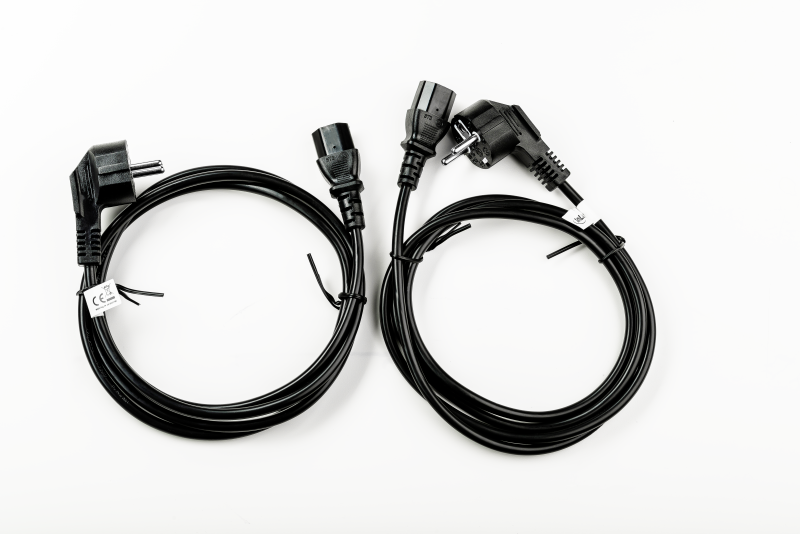

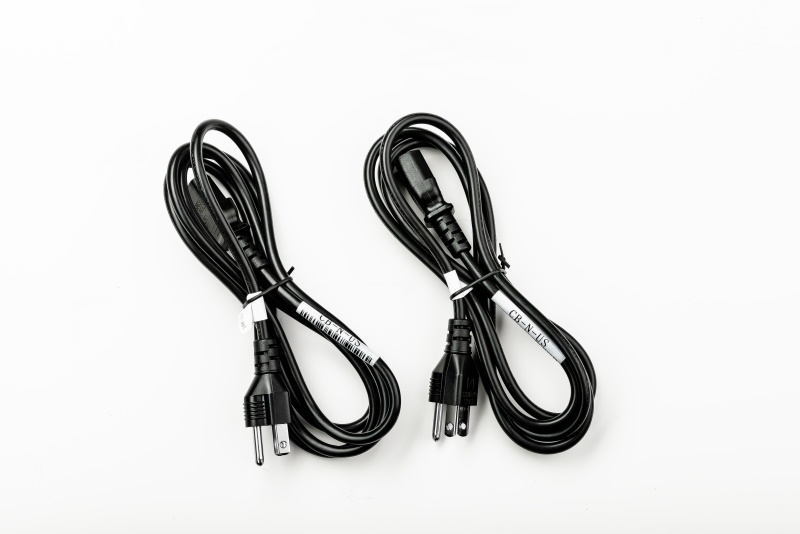

4 Mains Cables, two sets of pairs for European standard American standard

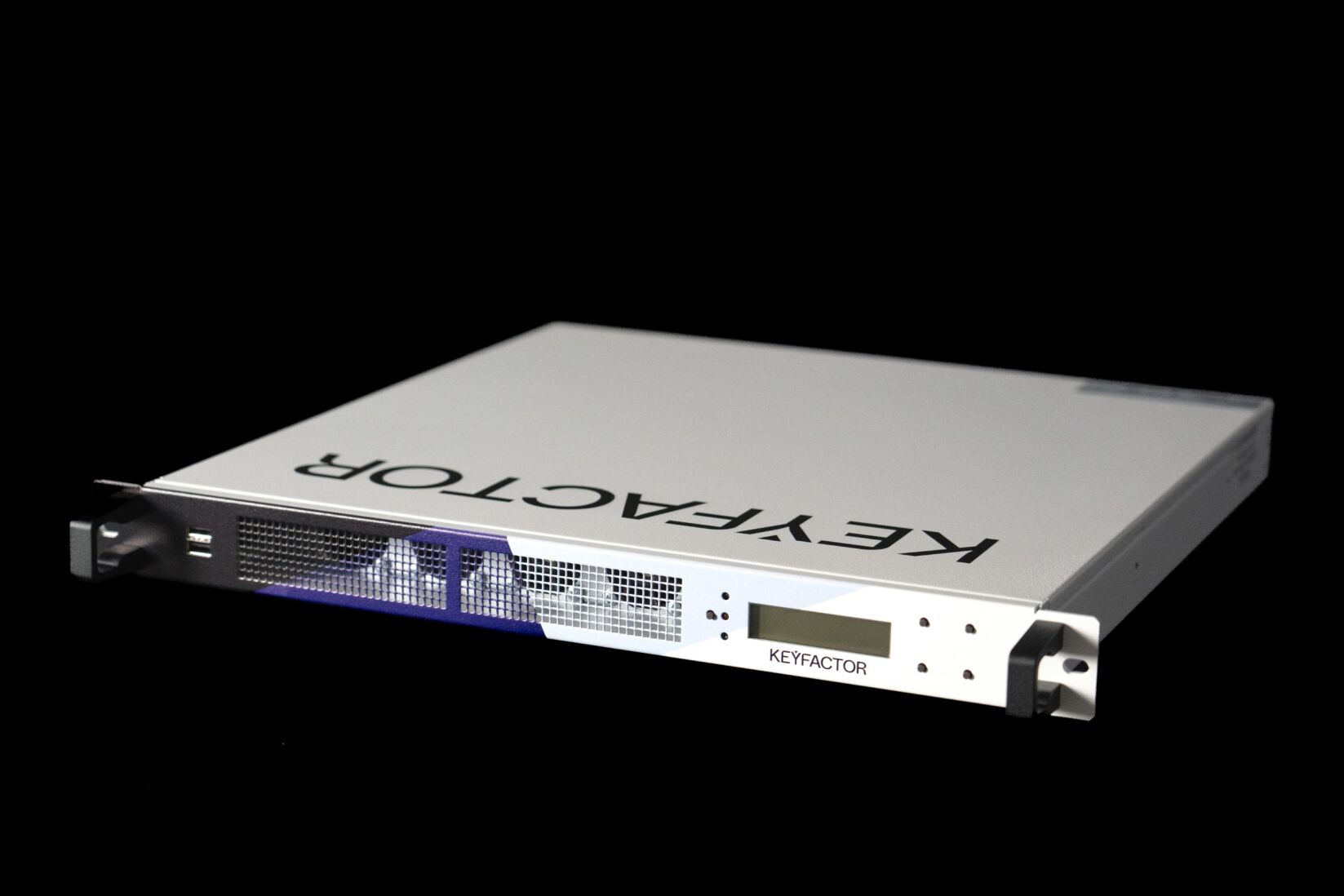

Overview - Front

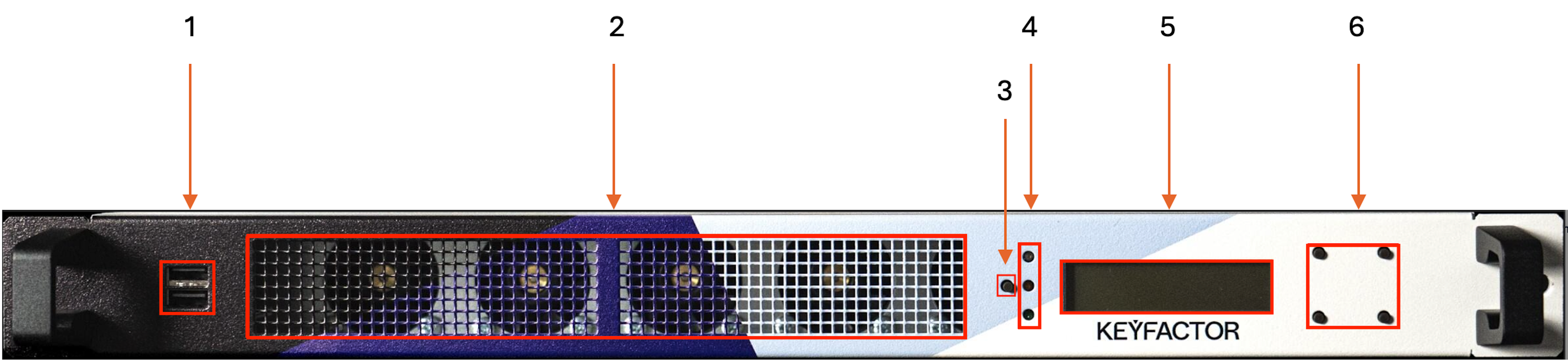

The following image the front view of the Next Generation Hardware Appliance.

1. Front USB ports:
   The ports are suitable for PIN Pad connection.

2. Cooling vents:
   Do not obstruct the vents.

3. Power

4. Status LED row:
   Green: Power
   Red: Hard Disk
   Yellow: Info

5. Front display for status information and IP address configuration messages

6. Menu buttons to operate the front display:
   starting from top left, counter-clockwise:
   Up, Down, Enter, Cancel

Overview - Back

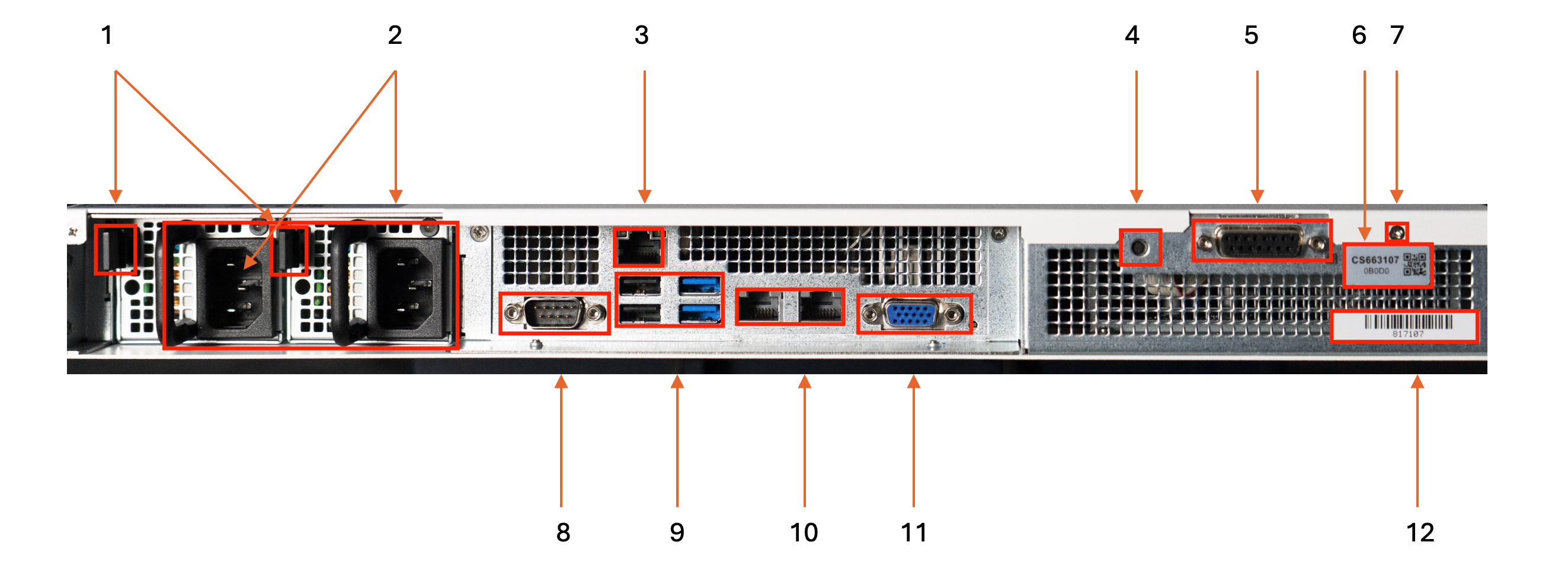

The following illustrates the back view of the Next Generation Hardware Appliance.

1. Hot plug release button for Power Supply Unit (PSU)

2. Two power supply units (PSU), redundant

3. Ethernet Port

4. Safeguarded External Erase button for Factory Reset.
   The External Erase button must not be pressed for longer than 5 seconds.
   Otherwise the HSM will be destroyed and must be replaced.

5. Connector for external battery and test automation

6. HSM serial number

7. LED from HSM

8. Mainboard serial connection, not operational

9. Mainboard USB ports, suitable for PIN pad connection

10. Two network interfaces

11. Mainboard VGA connector, not required for operation

12. Keyfactor Next Generation Hardware Appliance serial number

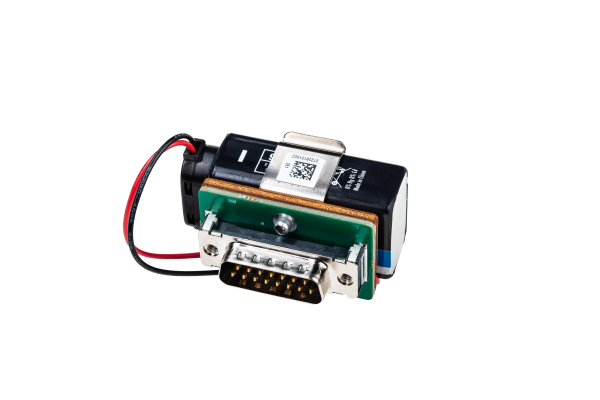

External Battery Adapter

The following illustrates the external battery adapter of the Next Generation Hardware Appliance.

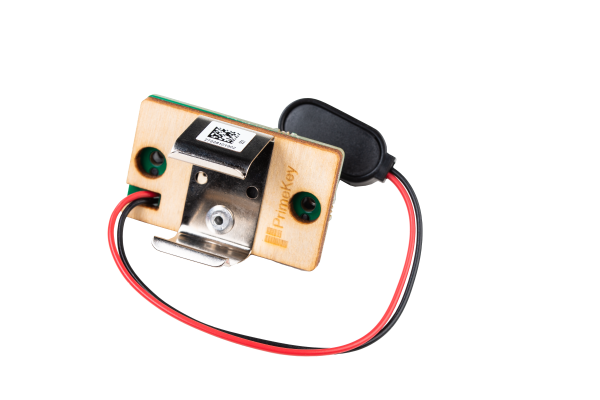

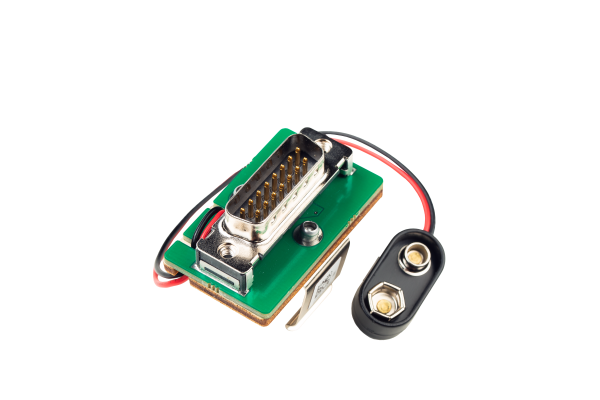

Side to be plugged into the device
Side that holds the battery

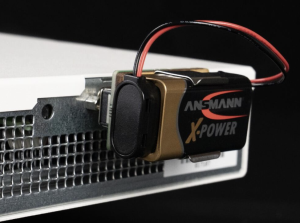

External Battery Adapter with connected battery
Connected External Battery Adapter

The purpose of the external battery adapter is to support the power supply of the HSM. The HSM always requires power, even if the Next Generation Hardware Appliance has not been put into operation or is not supplied with power. The HSM's internal battery is not designed to be inactive for long periods of time. To prevent the HSM from being completely discharged and thus put into maintenance mode, use the external battery adapter to buffer the internal HSM battery and extend its service life when the appliance is switched off. This is useful, for example, if a Next Generation Hardware Appliance is operated as an offline (root) CA.
