Overview
Scope of Delivery
The Next Generation Hardware Appliance package contains the following items:
1 Quality Assurance Test Report | The Next Generation Hardware Appliance Test Report lists the quality checks carried out. It is signed by authorized Keyfactor personnel. |
1 Packing List |
|

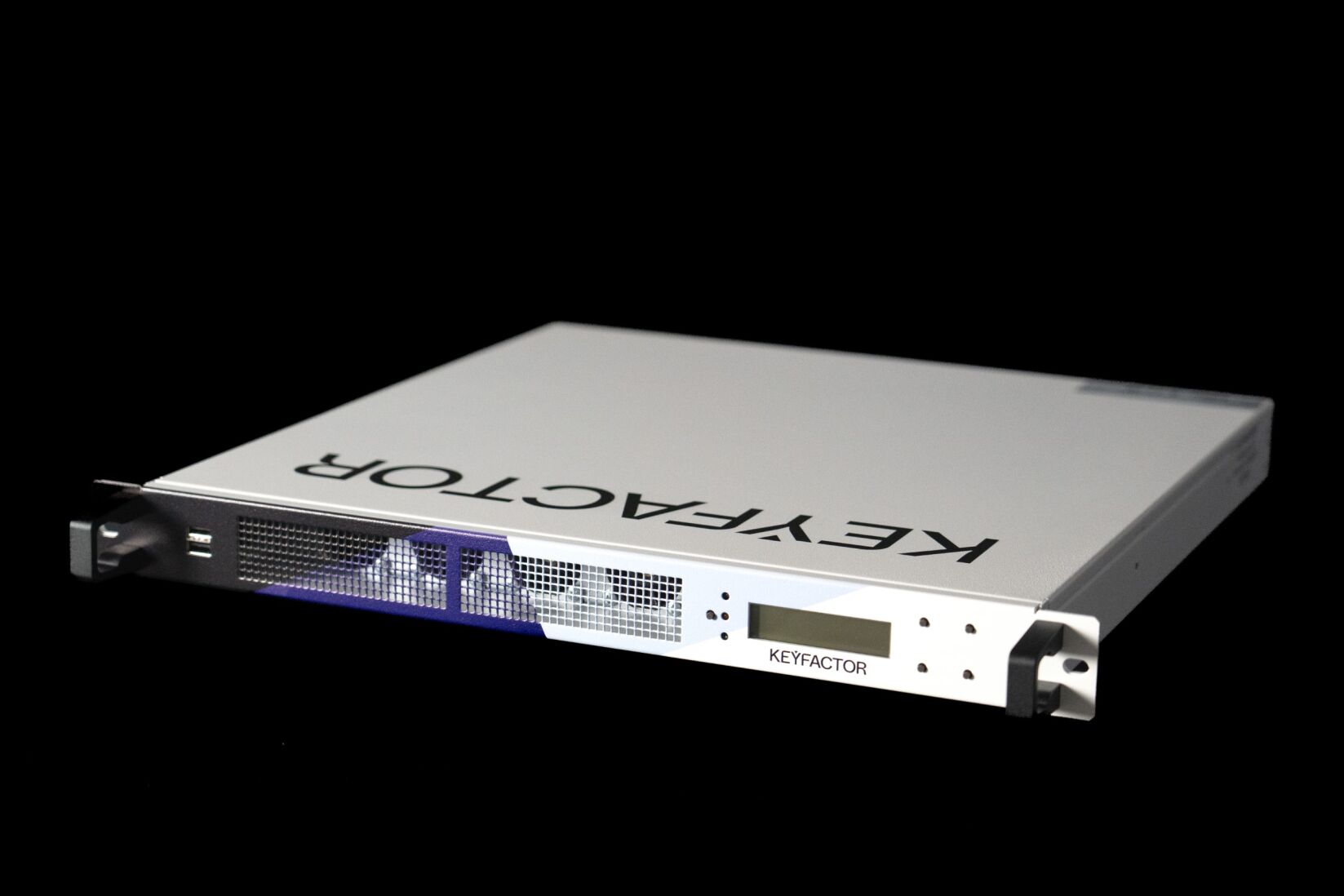

1 Next Generation Hardware Appliance |
|

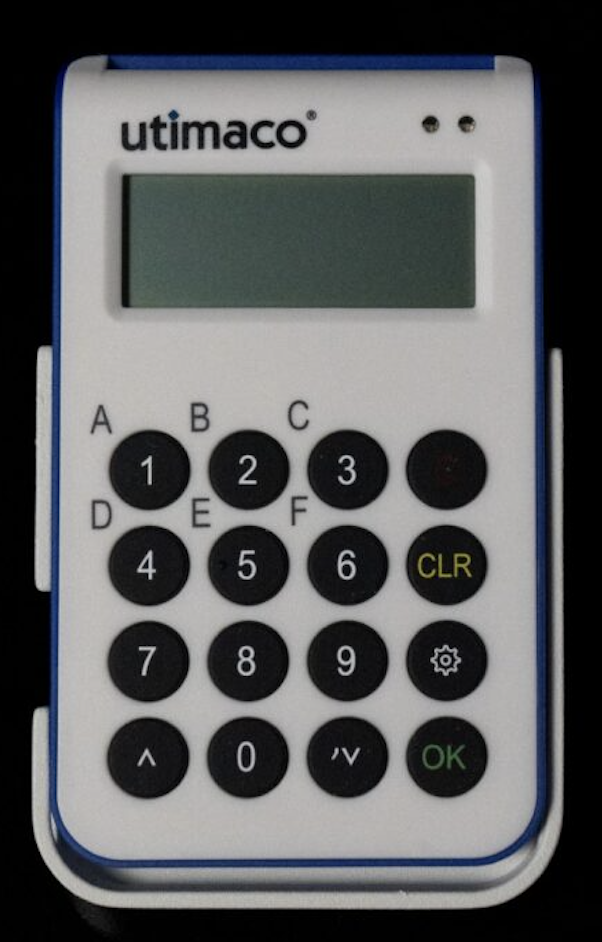

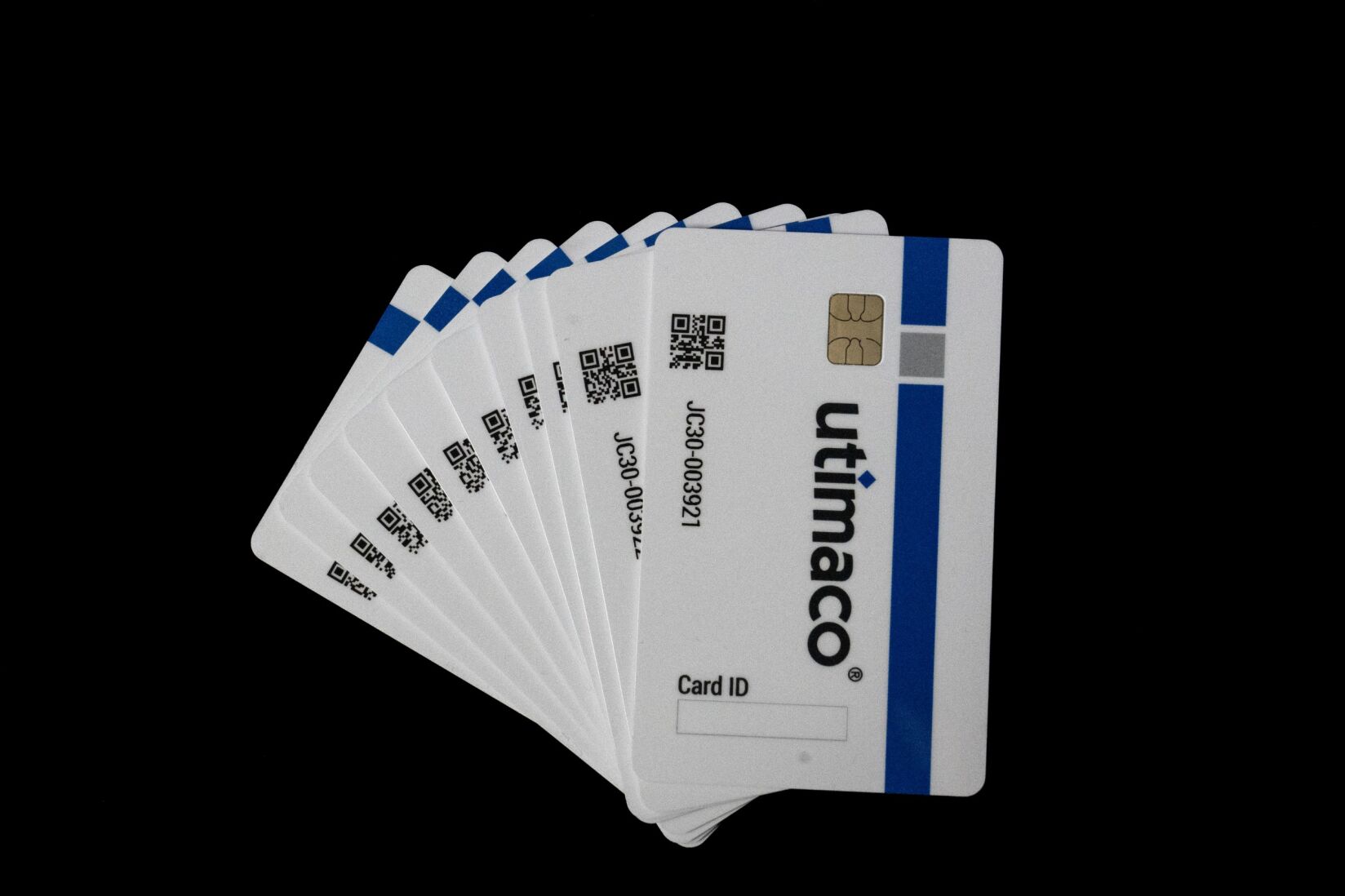

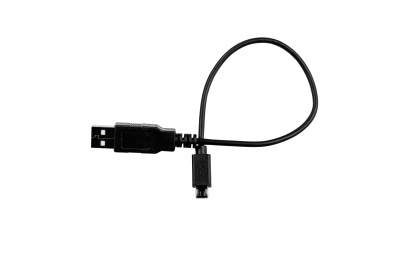

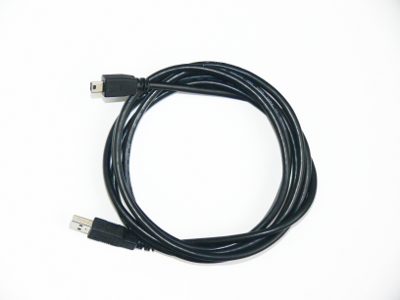

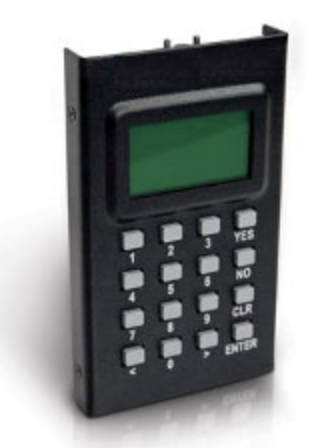

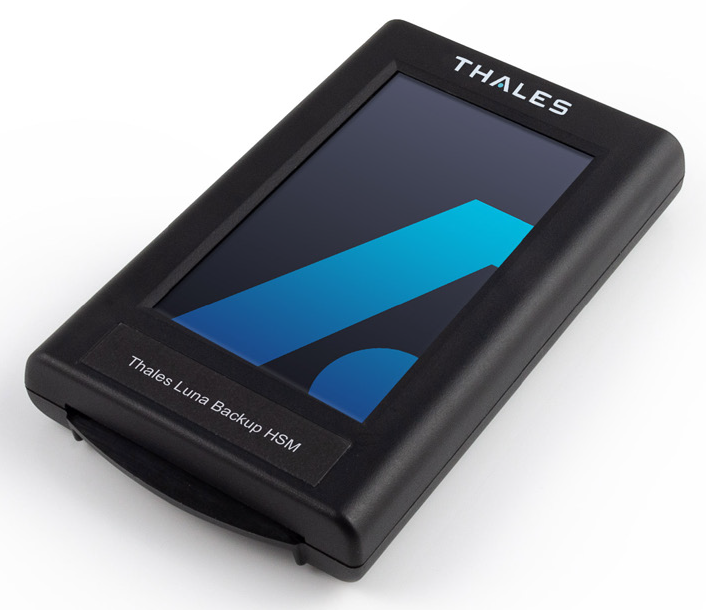

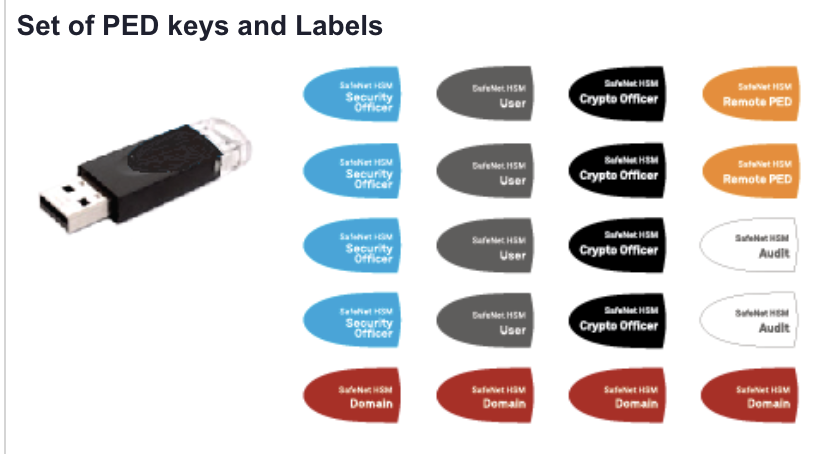

1 PINPad Smart Card Reader 1 USB A to Micro USB Cable (optional) 10 Smart Cards | |
1 External Battery Adapter |
|
1 Set of Mounting Rails |
|

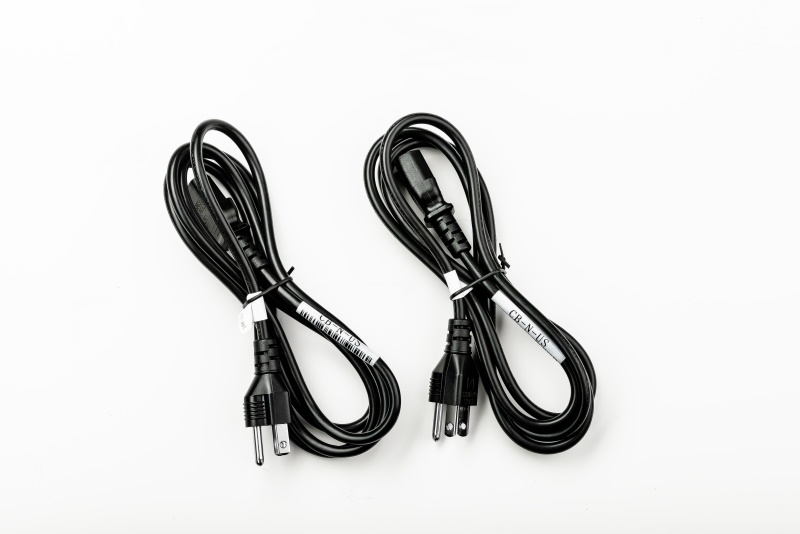

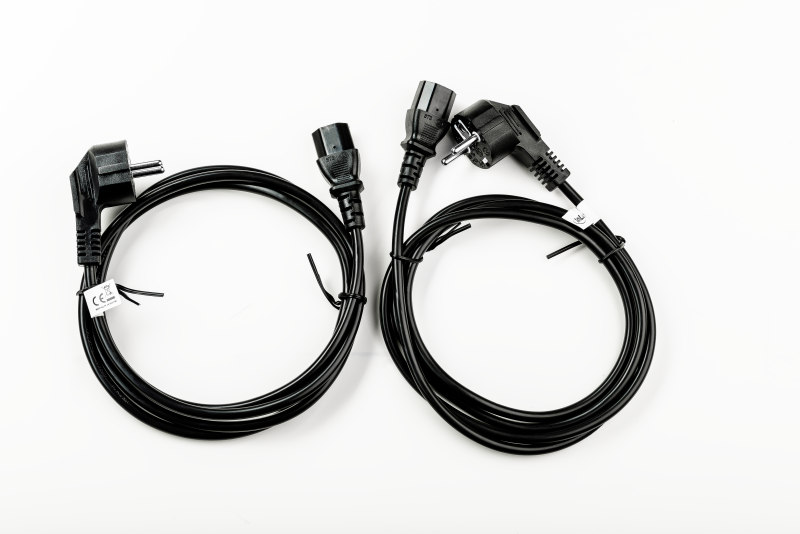

4 Mains Cables, two sets of pairs for European standard American standard |
|
Overview - Front

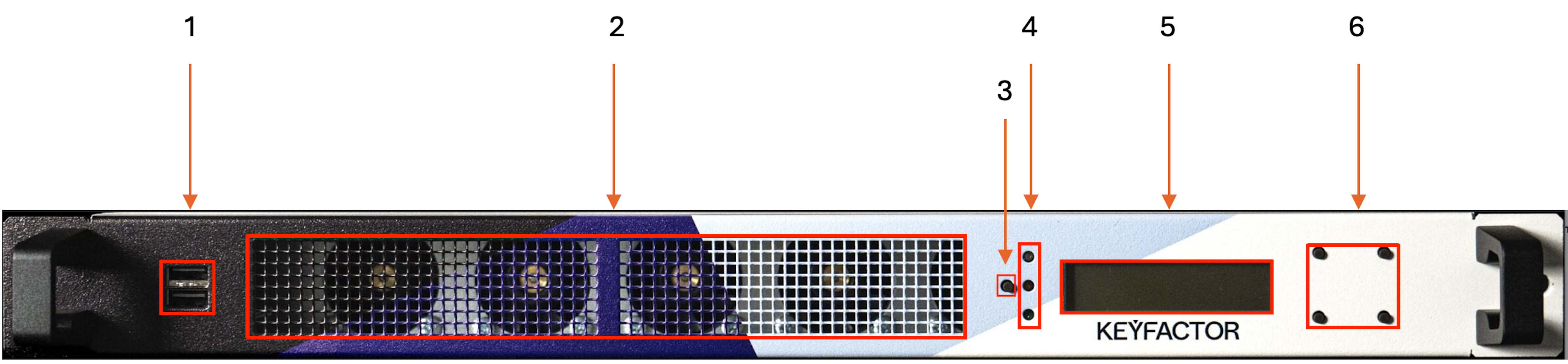

The following image the front view of the Next Generation Hardware Appliance.
Front USB ports:
The ports are suitable for PIN Pad connection.Cooling vents:
Do not obstruct the vents.Power
Status LED row:
Green: Power
Red: Hard Disk
Yellow: InfoFront display for status information and IP address configuration messages
Menu buttons to operate the front display:
starting from top left, counter-clockwise:
Up, Down, Enter, Cancel
Overview - Back

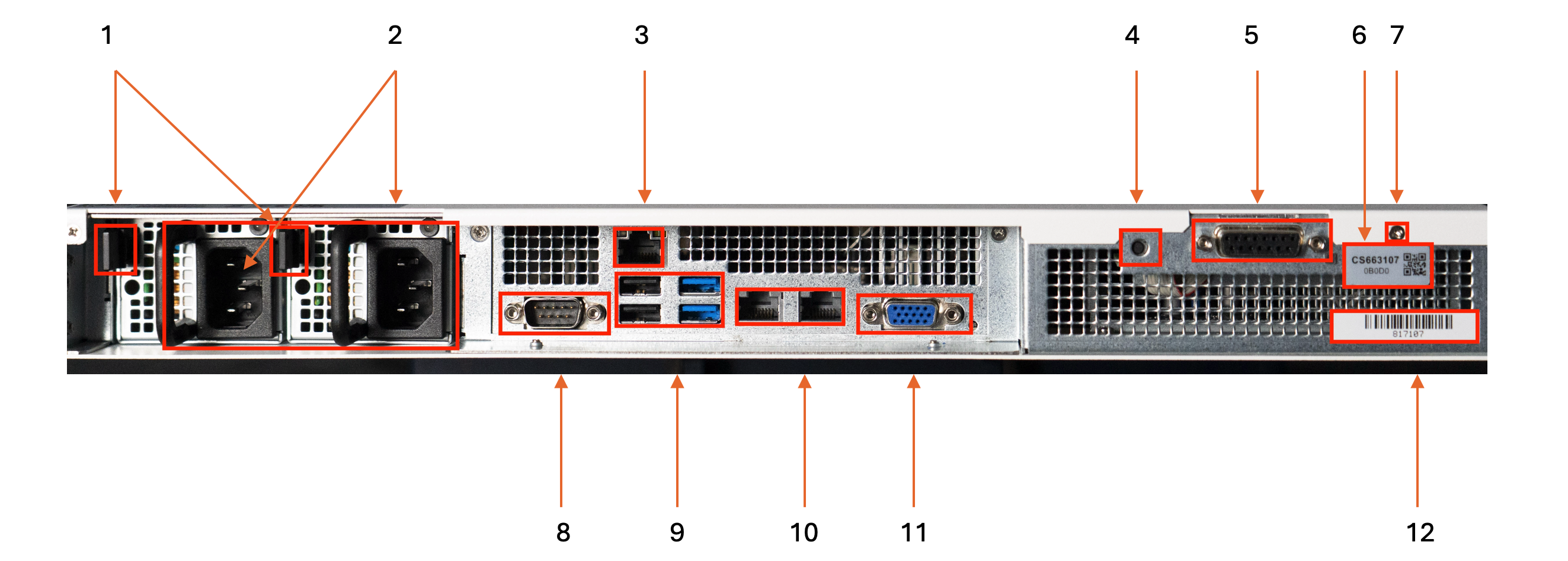

The following illustrates the back view of the Next Generation Hardware Appliance.
Hot plug release button for Power Supply Unit (PSU)
Two power supply units (PSU), redundant
Ethernet Port
Safeguarded External Erase button for Factory Reset.
The External Erase button must not be pressed for longer than 5 seconds.
Otherwise the HSM will be destroyed and must be replaced.Connector for external battery and test automation
HSM serial number
LED from HSM
Mainboard serial connection, not operational
Mainboard USB ports, suitable for PIN pad connection
Two network interfaces
Mainboard VGA connector, not required for operation
Keyfactor Next Generation Hardware Appliance serial number
External Battery Adapter
The following illustrates the external battery adapter of the Next Generation Hardware Appliance.

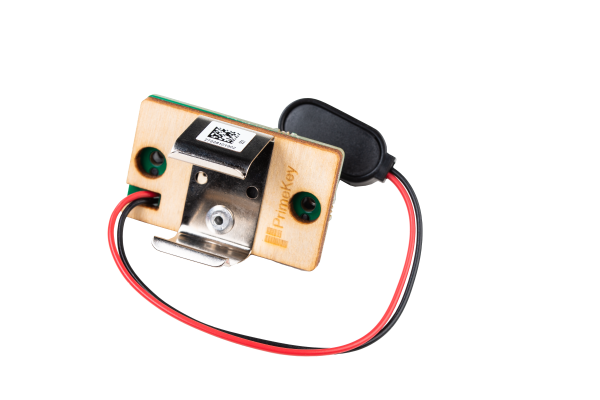

Side to be plugged into the device |
|
Side that holds the battery | |

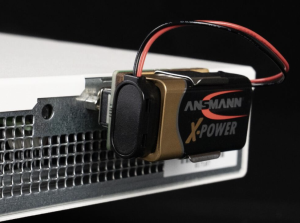

External Battery Adapter with connected battery |
|

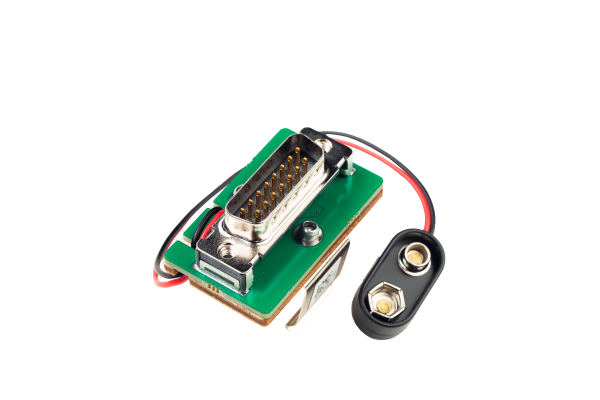

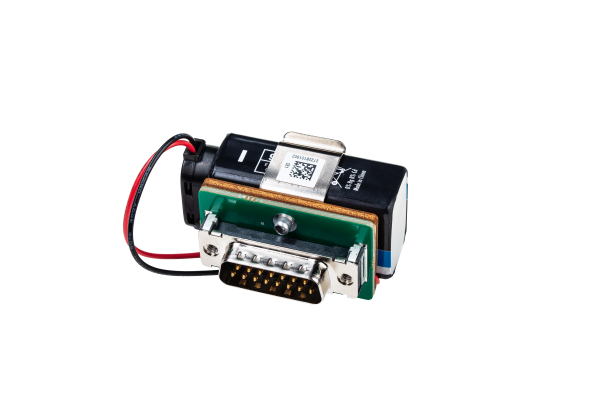

Connected External Battery Adapter |
The purpose of the external battery adapter is to support the power supply of the HSM. The HSM always requires power, even if the Next Generation Hardware Appliance has not been put into operation or is not supplied with power. The HSM's internal battery is not designed to be inactive for long periods of time. To prevent the HSM from being completely discharged and thus put into maintenance mode, use the external battery adapter to buffer the internal HSM battery and extend its service life when the appliance is switched off. This is useful, for example, if a Next Generation Hardware Appliance is operated as an offline (root) CA.
