Creating the Peer Connection

To create the Peer Connection, do the following:

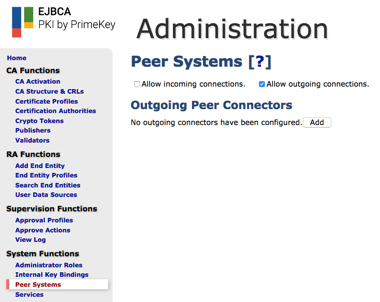

1. Select Peer Systems under System Functions and make sure that the Allow outgoing connections option is selected.

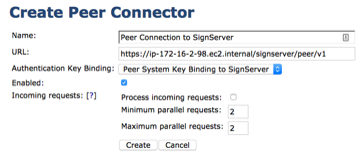

2. Click Add and specify the following in the Create Peer Connector screen:
   Name: Peer Connection to SignServer
   URL: https://ip-172-16-2-98.ec2.internal/signserver/peer/v1
   NOTE This will be the internal DNS name for your SignServer instance.
   Authentication Key Binding: Peer System Key Binding to SignServer
   Enabled: Selected








3. Click Create.

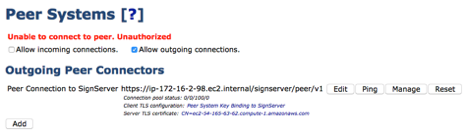

4. Click Ping. You should get an error that says: “Unable to connect to peer. Unauthorized”.  This “error” is expected because we have not yet allowed the connection on the SignServer side.
