Thales Luna HSM Connector User Guide

Instructions for deploying the Thales Luna HSM Connector to scan for cryptographic assets and deliver findings to the AgileSec Platform for processing and analysis.

Overview

The Thales Luna HSM Connector integrates Thales Luna Network HSM with Keyfactor's AgileSec platform. The Connector authenticates to the Luna REST API, iterates over the configured HSM partitions, enumerates their objects, and transmits findings to the AgileSec platform.

What Gets Scanned

The Thales Luna HSM Connector can discover the following cryptographic asset types:

• Cryptographic Keys: Symmetric and asymmetric keys stored in HSM partitions.

• Key Attributes: Algorithm, key size, permitted key operations (sign, verify, encrypt, decrypt, wrap, unwrap, derive, encapsulate, decapsulate), and object metadata (label, fingerprint, sensitivity and extractability attributes).

Prerequisites

Ensure you meet the following requirements to enable scanning.

Network Access

Ensure HTTPS network connectivity from AgileSec platform or remote execution machine to the Luna HSM appliance.

Supported Authentication Methods

The Thales Luna HSM Connector uses two authentication methods:

• Session Authentication: The Thales Luna HSM Connector uses REST API authentication (Username/Password). API authentication must be enabled and configured on the Luna HSM appliance.

• Partition Auth: Each partition uses role/password to authenticate. These may be set per-partition or generically for all partitions.

Thales Luna Required Access Rights

Luna REST API must be enabled on the HSM appliance. The Thales Luna HSM Connector requires access to the following API endpoints:

Remote Execution Requirements

If running the Connector remotely using CLI, the remote execution machine must meet these requirements:

Running the Connector

The Thales Luna HSM Connector performs Remote Scan Execution via CLI on customer-managed infrastructure.

Configuration Fields

The following parameters are used to configure AgileSec PKCS#11 HSM scans.

Basic Parameters

partitions Object Fields

Each partition may configure unique role and password settings.

Advanced Configuration Parameters

Parallel Processing: Advanced users may configure concurrent partition and object processing for faster scans.

Async Task Support: Advanced users may configure task polling for long-running HSM operations.

Remote Scan Execution

Scans may be run on remote host machines with the AgileSec Remote Sensor Package.

Download Remote Sensor Package

1. Open your browser and navigate to the Keyfactor AgileSec Platform Web URL

2. Log in with your credentials

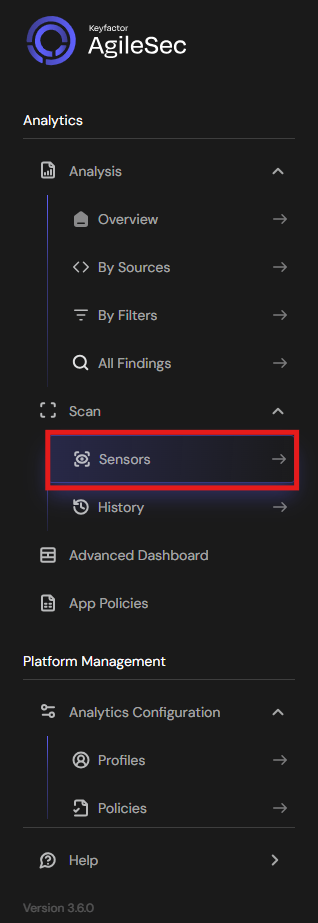

3. Click on "Sensors" in the left navigation menu under Scan

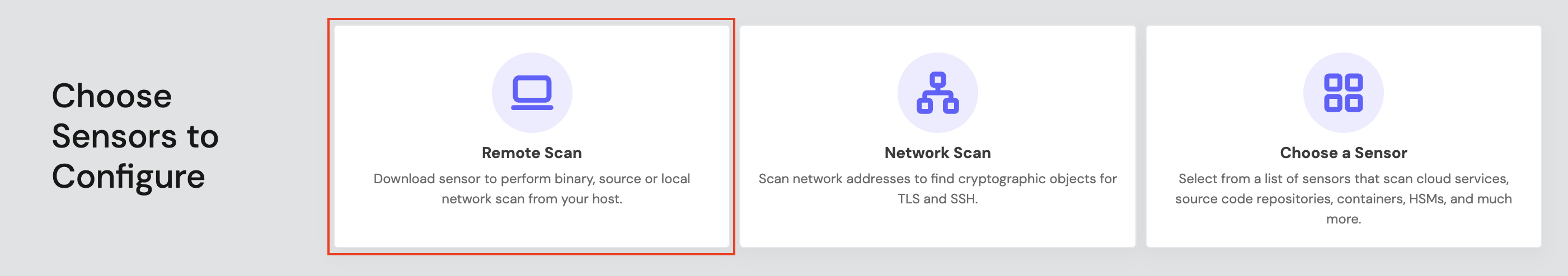

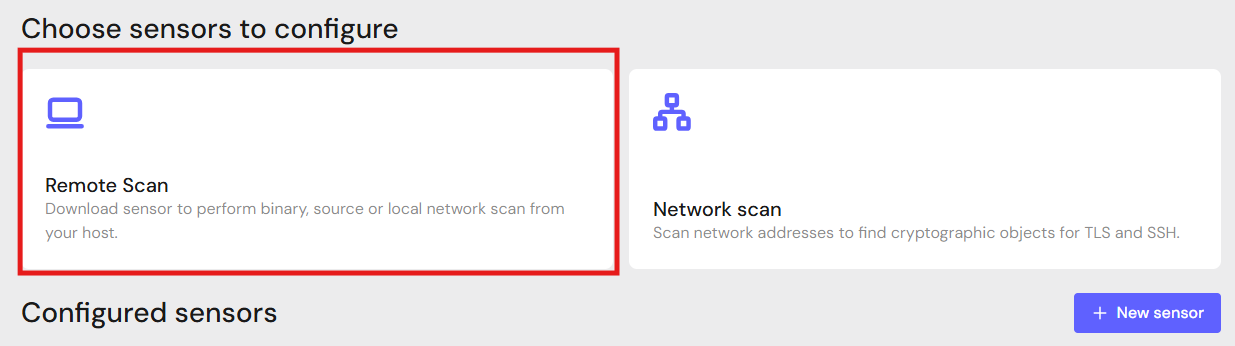

4. Click Remote Scan.

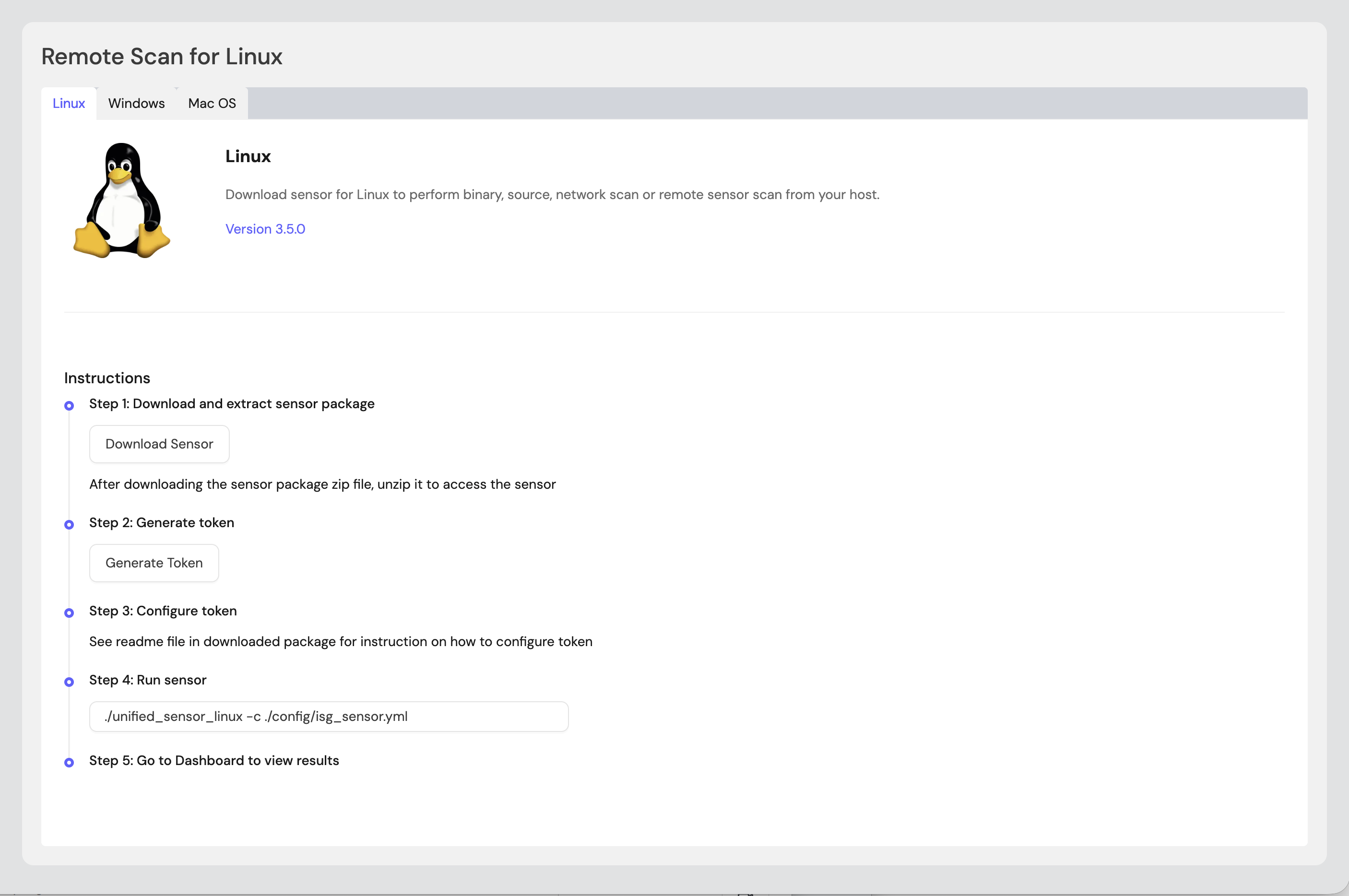

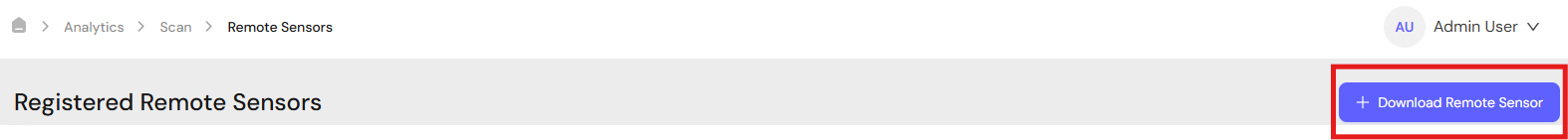

5. Click + Download Remote Sensor.

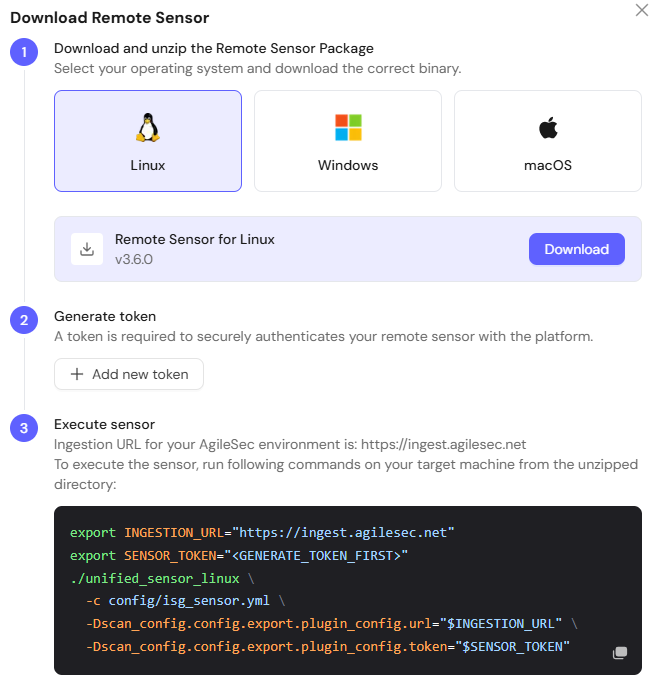

6. Download the sensor binary for your remote machine’s operating system



Generate Platform Token

7. In the Download Remote UI, click "Generate Token"

8. Copy the generated token

9. Store securely in an environment variable such as SENSOR_TOKEN:

    export SENSOR_TOKEN="your-generated-token"


Create Configuration File

Create a YAML configuration file (e.g., thales_luna-config.yml) with your scan settings. An example configuration can be found in config/sample-configs/thales_luna.yml.

Step 4: Run the Connector

Execute the Connector with your configuration file:

• Linux/macOS

  Bash

  # Set environment variables
  export SENSOR_TOKEN="your-sensor-token"

  # Run Connector
  ./unified_sensor_linux -c thales_luna-config.yml


• Windows (PowerShell)

  PowerShell

  # Set environment variables
  $env:SENSOR_TOKEN = "your-sensor-token"

  # Run Connector
  .\\unified_sensor_windows.exe -c .\\thales_luna-config.yml


Remote Scan Execution Configuration Examples

• Basic Configuration

  YAML

  scan_config:
    plugins:
      - thales_luna
      - export
    config:
      thales_luna:
        name: thales_luna
        plugin_config:
          base_url: "<https://luna-hsm:8443>"
          username: "rest_api_user"
          password: "${env:LUNA_PASS}"
          api_version: 16


• With Specific Partitions and Concurrency

  YAML

  scan_config:
    plugins:
      - thales_luna
      - export
    config:
      thales_luna:
        name: thales_luna
        plugin_config:
          base_url: "<https://luna-hsm:8443>"
          username: "rest_api_user"
          password: "${env:LUNA_PASS}"
          api_version: 16
          partition_role: "co"
          partition_password: "${env:PARTITION_PASS}"
          partitions:
            - hsm_id: "hsm1"
              partition_id: "partition1"
              role: "co"
              password: "${env:PARTITION1_PASS}"
            - hsm_id: "hsm1"
              partition_id: "partition2"
          max_parallel_partitions: 2
          max_parallel_partition_tasks: 8


Known Limitations

REST API Required

The Luna HSM must have the REST API enabled. Older firmware versions may not support this feature.

Concurrency Limits

Setting max_parallel_partitions and max_parallel_partition_tasks too high may overwhelm the HSM. The total goroutine count is max_parallel_partitions × max_parallel_partition_tasks.

Troubleshooting Common Errors

• CONFIG-404 — Unable to read/parse configuration file

  • Cause: The configuration file path is incorrect or the file is malformed.

  • Fix: Verify the config file path and validate JSON syntax.

• Thales Luna BaseURL is not configured

  • Cause: The base_url field is empty or missing.

  • Fix: Set base_url to the Luna HSM REST API URL.

• 401 Unauthorized

  • Cause: Invalid REST API credentials.

  • Fix: Verify the username and password are correct for the Luna REST API.

• Partition login failures

  • Cause: Incorrect partition role or password.

  • Fix: Verify the partition_role and partition_password settings. Check per-partition overrides if configured.

• Task polling timeouts

  • Cause: Async HSM operations taking longer than the configured task_wait_time.

  • Fix: Increase the task_wait_time value.

Getting Support

Collect diagnostic information:

• Connector version

• Configuration file (redact credentials)

• Log output

• Luna HSM details (URL, firmware version, API version)

Contact Support

• Portal: https://support.keyfactor.com
