Security: Configuring a Luna Network HSM

You can configure a Hardware Security Module (HSM) to store and protect your cryptographic keys. Optionally, you can use the software-based SoftHSM implementation for demonstration or testing purposes.

The following describes how to configure a Luna HSM for the Software Appliance by registering the Software Appliance and connecting it to the HSM.

Choose between one of the following options:

Luna Minimal Client 10.4.0
Luna Minimal Client 10.5.1
Luna TCT Client 7.12.1

Configuring an HSM for the Software Appliance is irrevocable. To change an HSM configuration, you must reset the Software Appliance.

The network-attached HSM stores, protects, and manages sensitive cryptographic keys in a centralized, high-assurance appliance, providing a root of trust for sensitive cryptographic data transactions. For more information, refer to the Thales docs on SafeNet Luna Hardware Security Modules.

To configure a Luna HSM for your Software Appliance, follow the steps below.

If you run into issues after the configuration, you can get HSM specific log messages from a HSM Support Package. For further information please refer to Create an HSM Log.

Connect the Software Appliance With the Luna Network HSM

To connect the Software Appliance with the HSM:

Log in to your Software Appliance and open the Security page or click Configure HSM in the Overview.

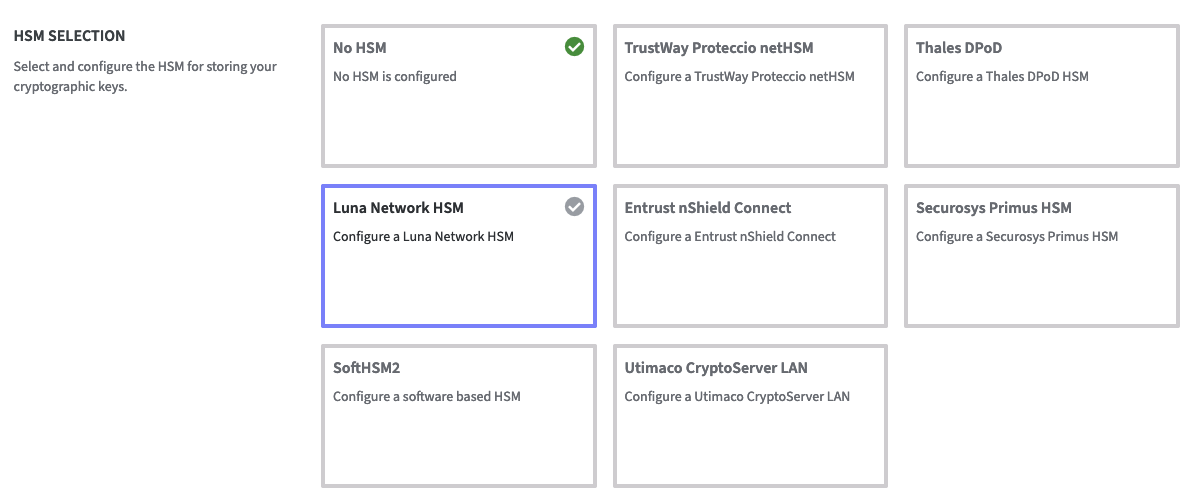

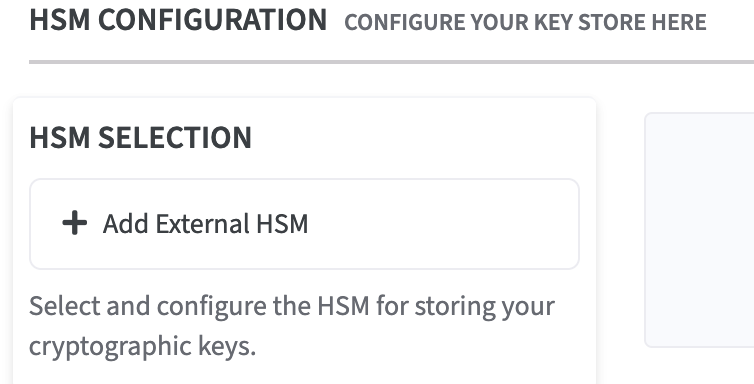

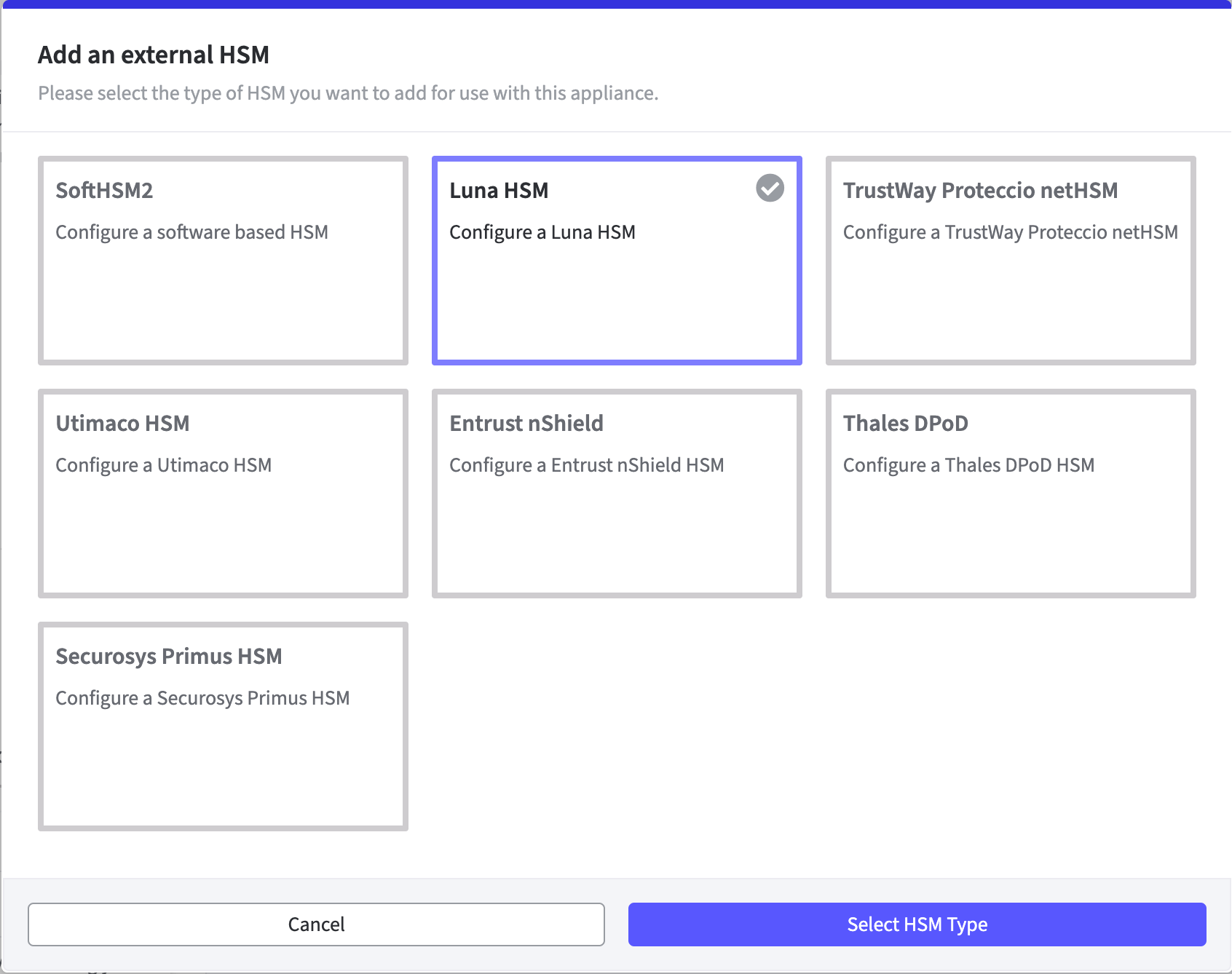

In the HSM Configuration section, select Luna Network HSM to access the Configuration fields.

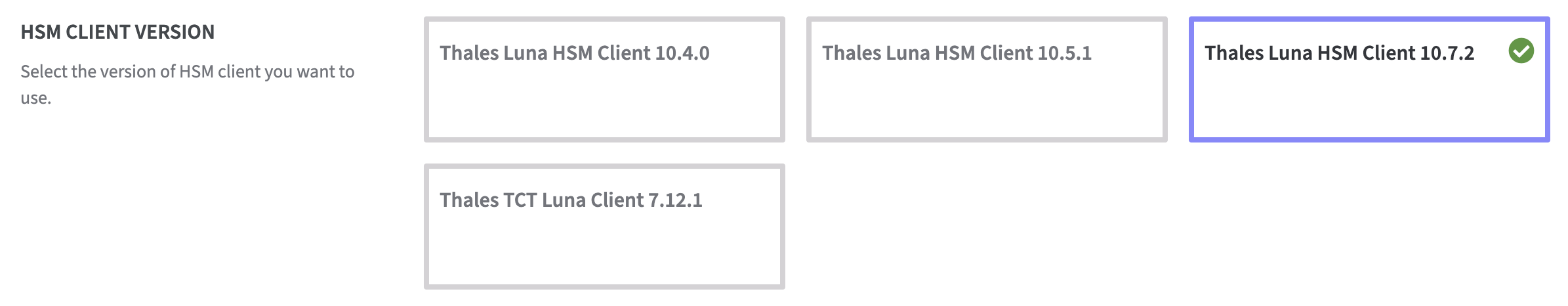

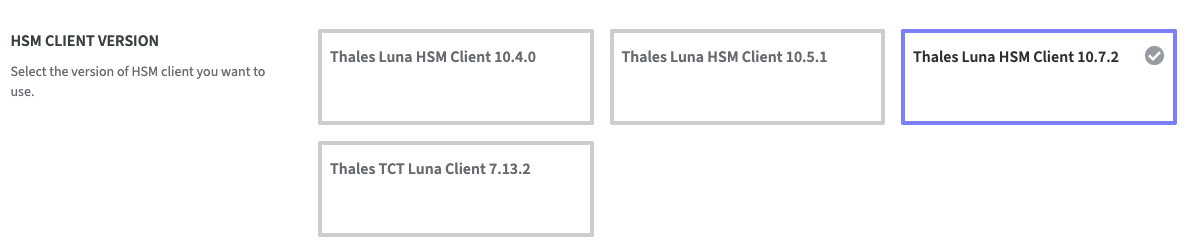

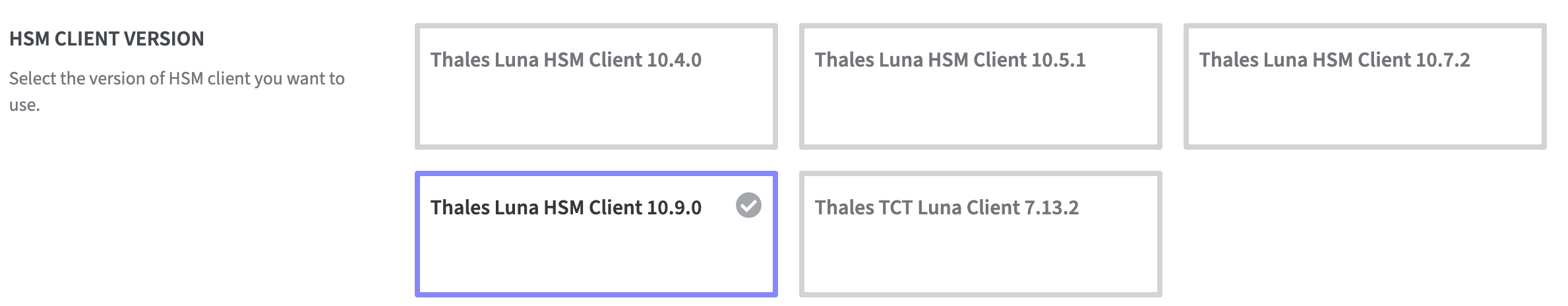

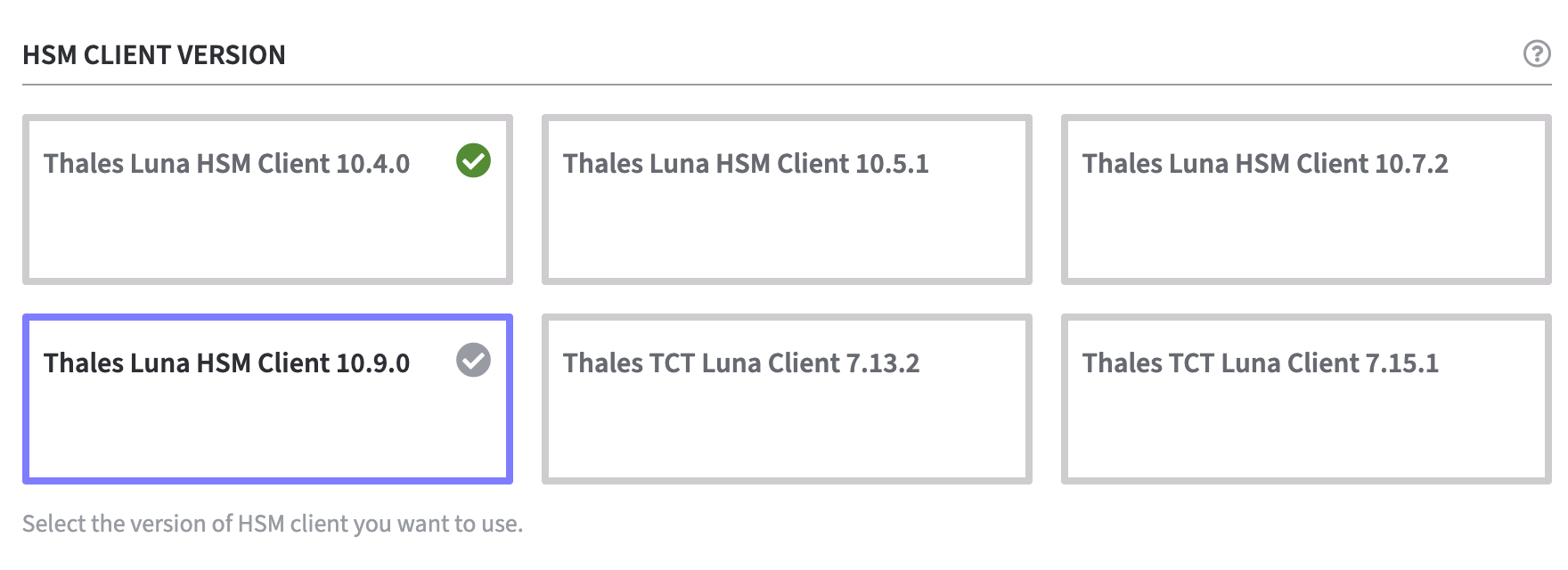

HSM Client Version
Click on the HSM Client you want to use.

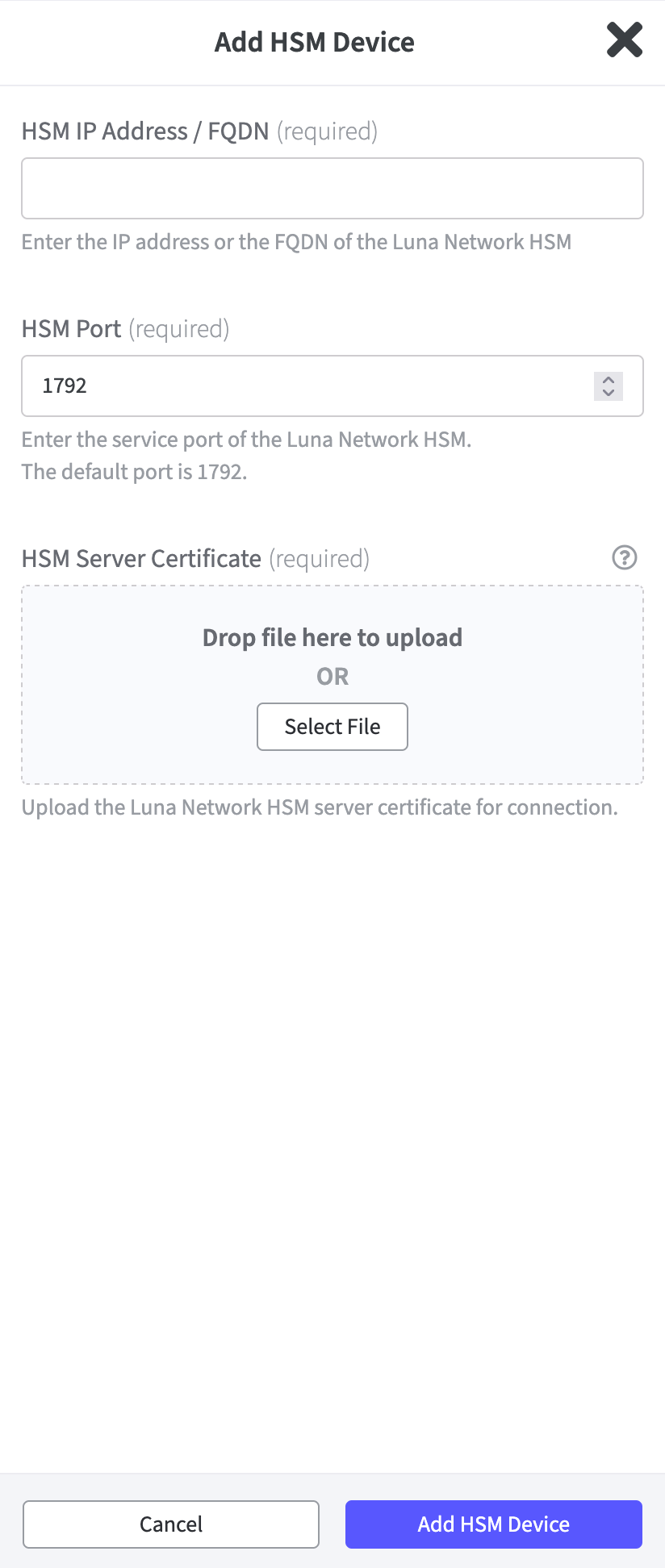

Click Add HSM Device to open the corresponding form for the certificate.
- HSM IP Address / FQDN:
  Enter the IP address or the Fully Qualified Domain Name (FQDN) of your Luna Network HSM.
  Only IPv4 addresses are supported.
- The HSM Port is already set by default.
- Upload the HSM Server Certificate. Drag and drop or select the file.
Confirm with Add HSM Device.

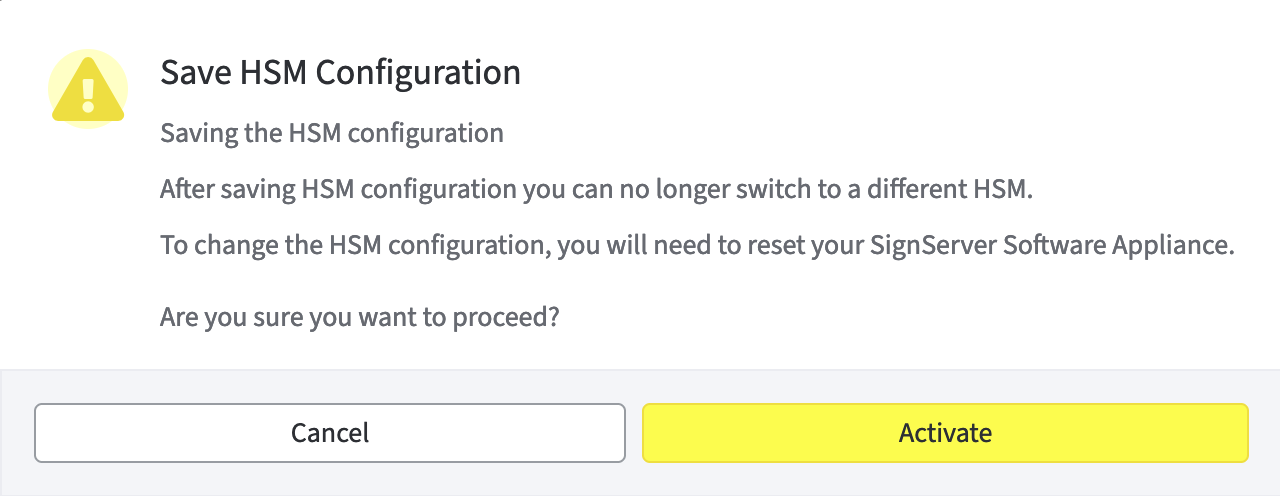

A warning appears to inform you that after saving HSM configuration you can no longer switch to a different HSM.
To change the HSM configuration, you need to reset your SignServer Software Appliance. Proceed by clicking Activate.
Proceed with Activate.

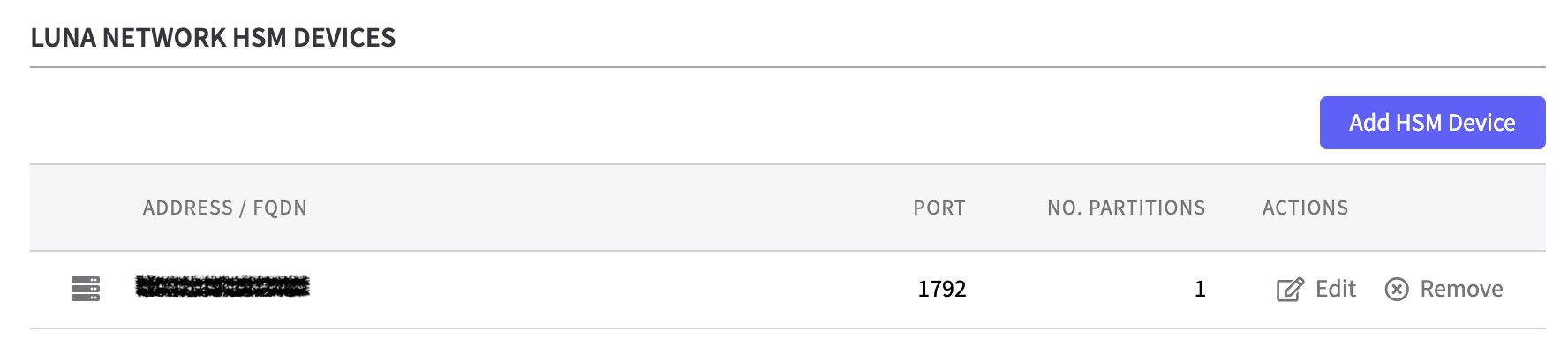

The information on the HSM is displayed.

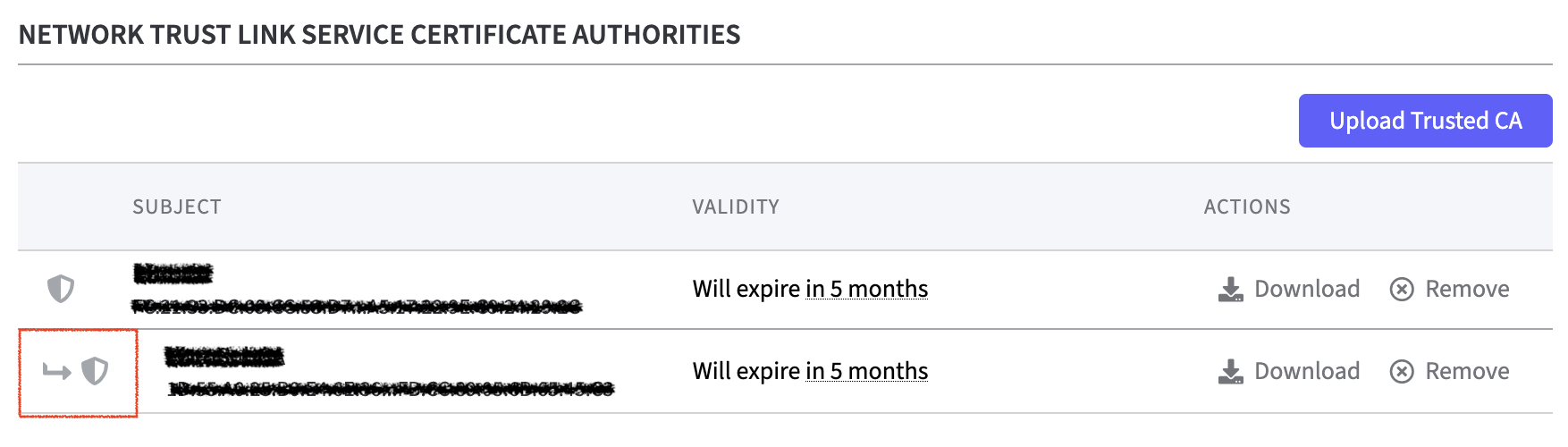

Configuration of Network Trust Link Service

Enter the following Configuration of Network Trust Link Service:

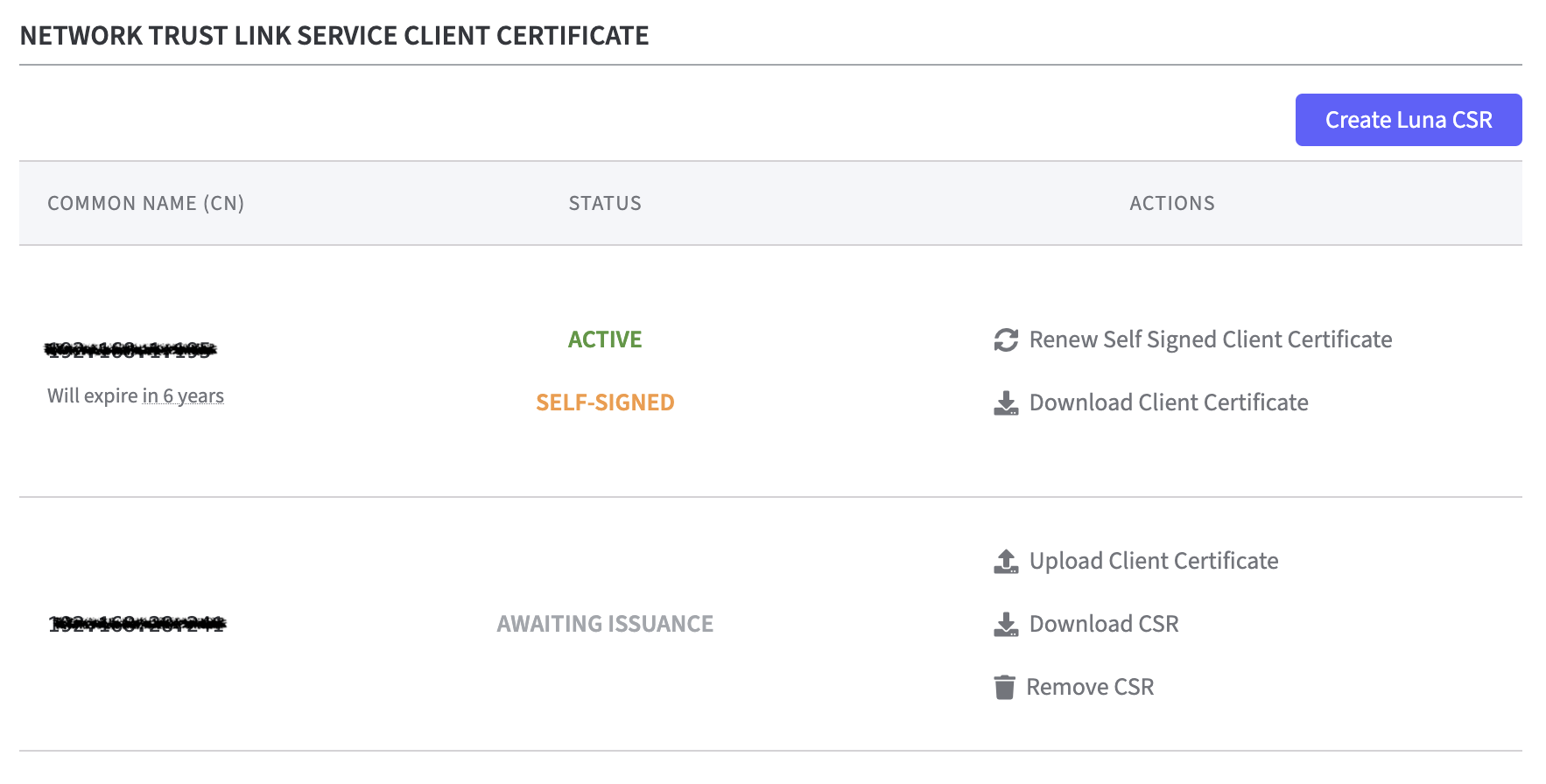

HSM Client Certificate:
Download your HSM Client Certificate and upload it to your Luna Network HSM.
If your HSM client certificate has expired or the Common Name (CN) field is incorrect, you can also renew the certificate.

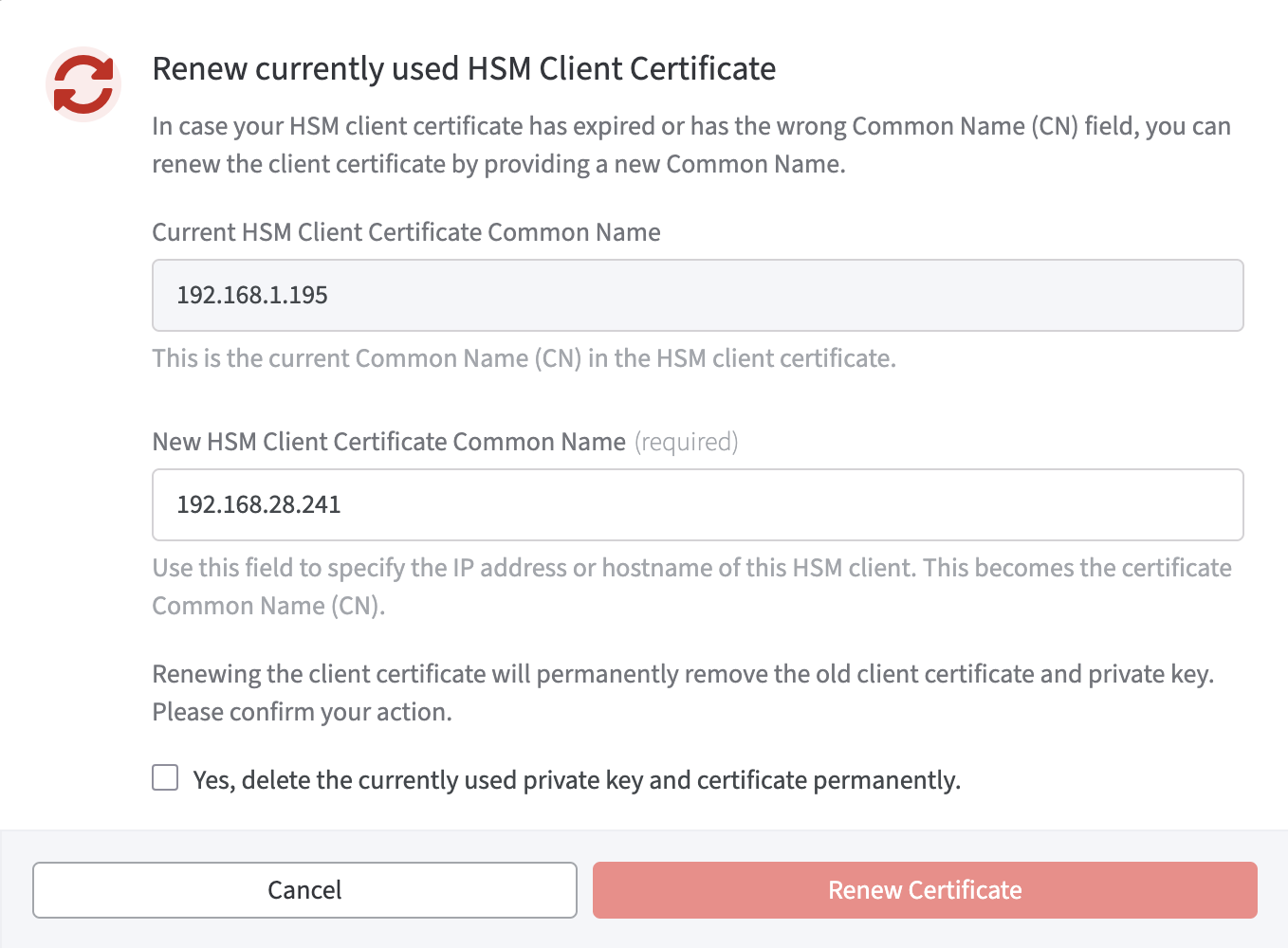

Click Renew Client Certificate.
A modal dialog follows, displaying the current HSM Client Certificate Common Name.
Enter the new HSM Client Certificate Common Name.
Confirm that the old certificate can be removed permanently.
Click Renew Certificate to proceed.

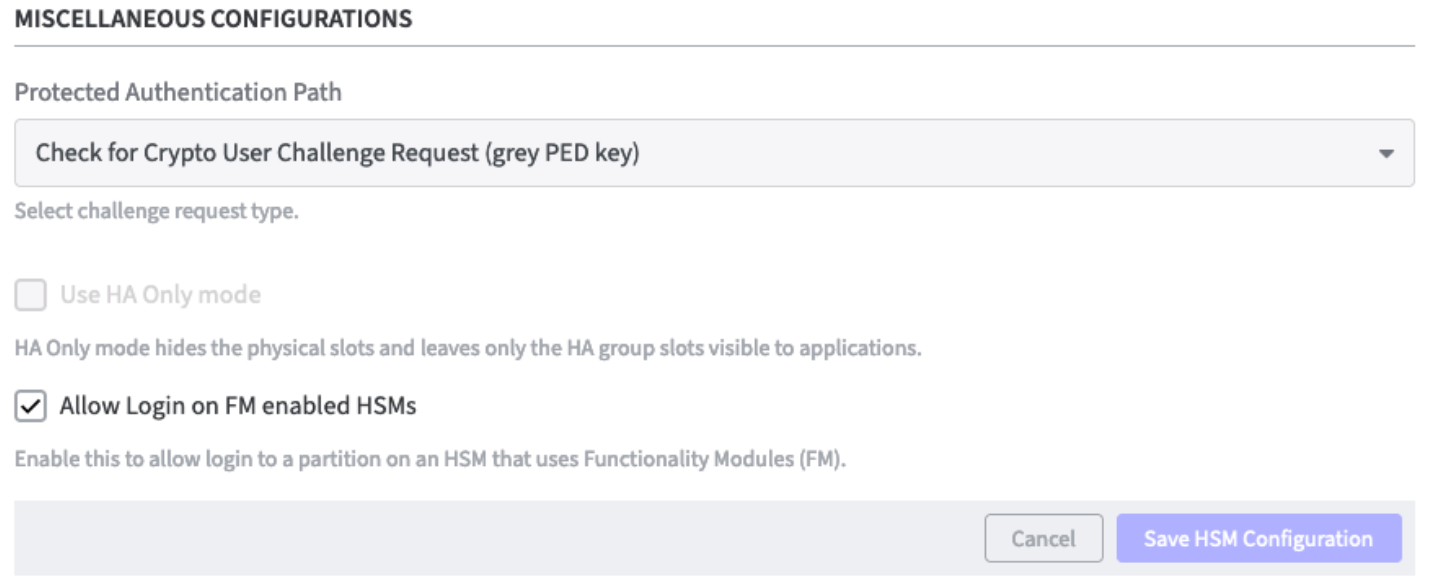

Miscellaneous Configurations

Enter the following Miscellaneous Configurations:
Protected Authentication Path: Select the desired authentication protection using the drop down function:

No Challenge Request:
There will be no further authentication protection
Check for Crypto Officer Challenge Request (black PED key):
You need to insert the black PED (PIN Entry Device) key for authentication.
Check for Crypto User Challenge Request (grey PED key):
You need to insert the grey PED (PIN Entry Device) key for authentication.

Moreover select the additional options:

Use HA Only mode:
This option is only selectable if a Luna HA group is configured. It hides the physical slots and leaves only the HA group slots visible to applications.
Allow Login on FM enabled HSMs:
Allow login to a partition on an HSM that uses FM (Functionality Modules).

Finish with Save HSM Configuration.

Next, proceed with registering the Software Appliance at the Luna Network HSM.

Register the Software Appliance at the Luna Network HSM

The following provides example configuration steps on how to create a connection, by uploading the client certificate to the HSM, registering the client, and assigning a partition of the HSM to the client. For detailed information, refer to Thales docs on Creating an NTLS Connection Using Self-Signed Certificates.

To register and connect to the HSM:

On the Security page, section HSM Configuration, click Download Client Certificate to download and save the certificate.

Upload the client certificate to the Luna Network HSM.

CODE

scp <appliance IP>.pem <luna IP>:<appliance IP>.pem

Log into the Luna Network HSM.

CODE

ssh admin@<luna IP>

Register the client with the HSM:

CODE

client register -client <appliance name> -ip <appliance IP>

Assign a partition of the HSM to the client.

CODE

client assignPartition -client <appliance name> -partition <partition name>

On the Security page of the application, the status of the HSM Driver will change from Not Connected to Connected as soon as the configuration is completed.

On the Overview page of the application, the status in the HSM Overview also changes to Connected as soon as the configuration is completed. During configuration, the appliance is in the Restarting status. During this time, it is not available.

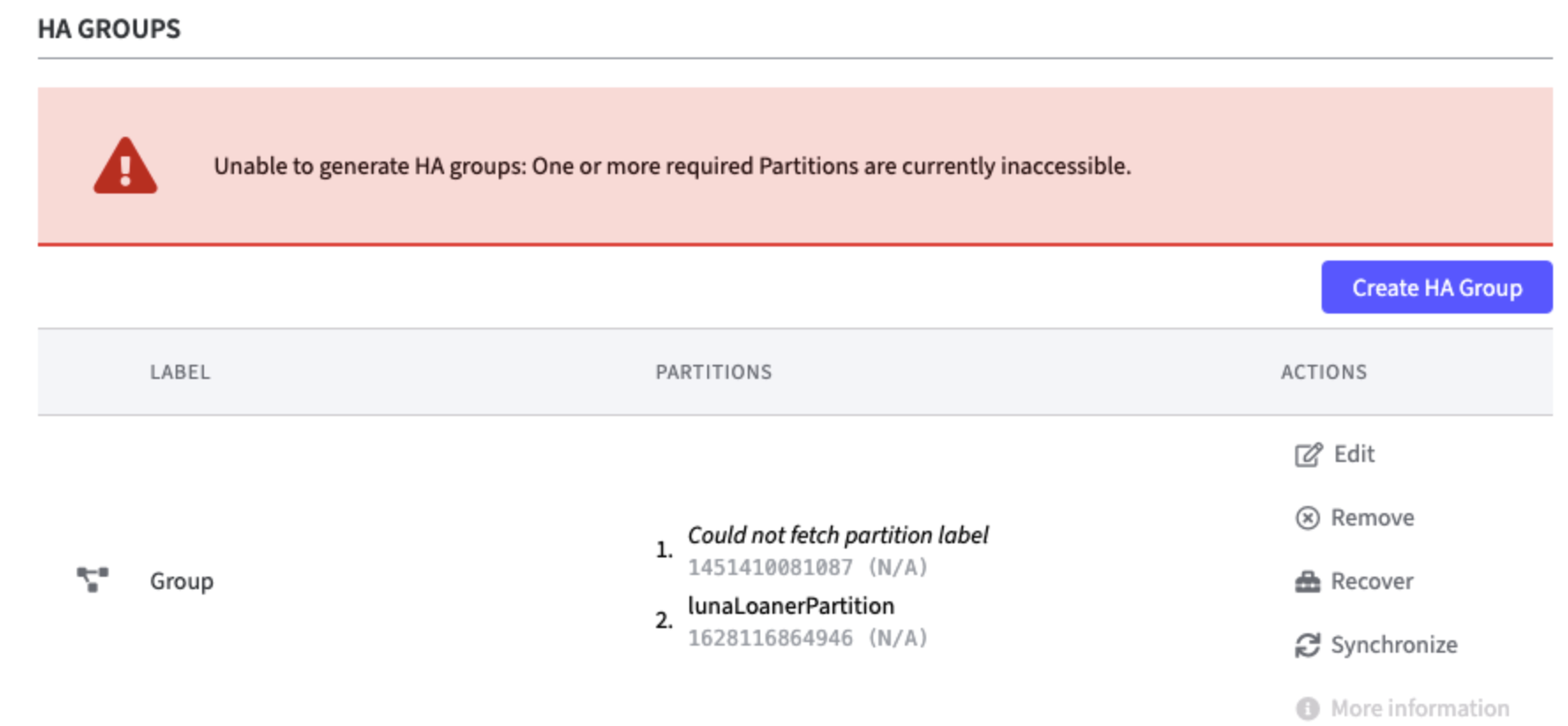

Create an HA Group for Luna HSM

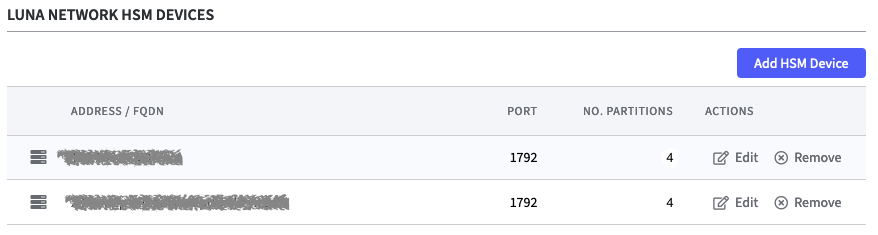

If you want to use HA Groups, at least two HSM devices must be listed.

When another HSM Device is added, a warning appears to inform you that changing the configuration of the HSM will restart all applications on the Software Appliance.

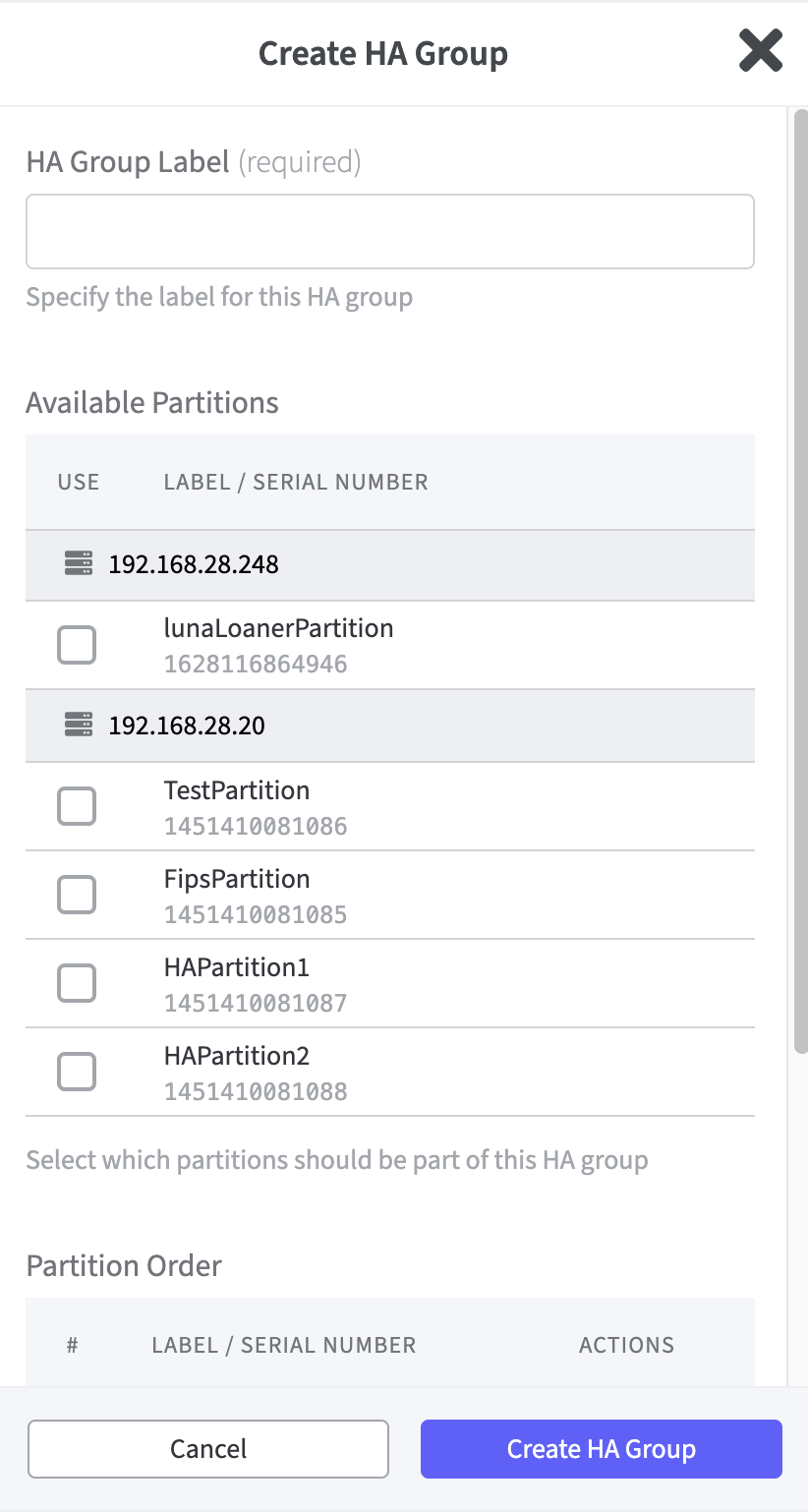

Click Create HA Group to open the corresponding form.
Enter HA Group Label.
Select the Partitions.

Ensure that all requirements described in the Thales Luna Network Documentation Archive under "Setting up an HA Group" are taken into account. For more information, see Set up an HA Group.

In Partitions Order you can set your preferences by moving the Partitions up or down.
Enter a HA Group Password and confirm by clicking Create HA Group.

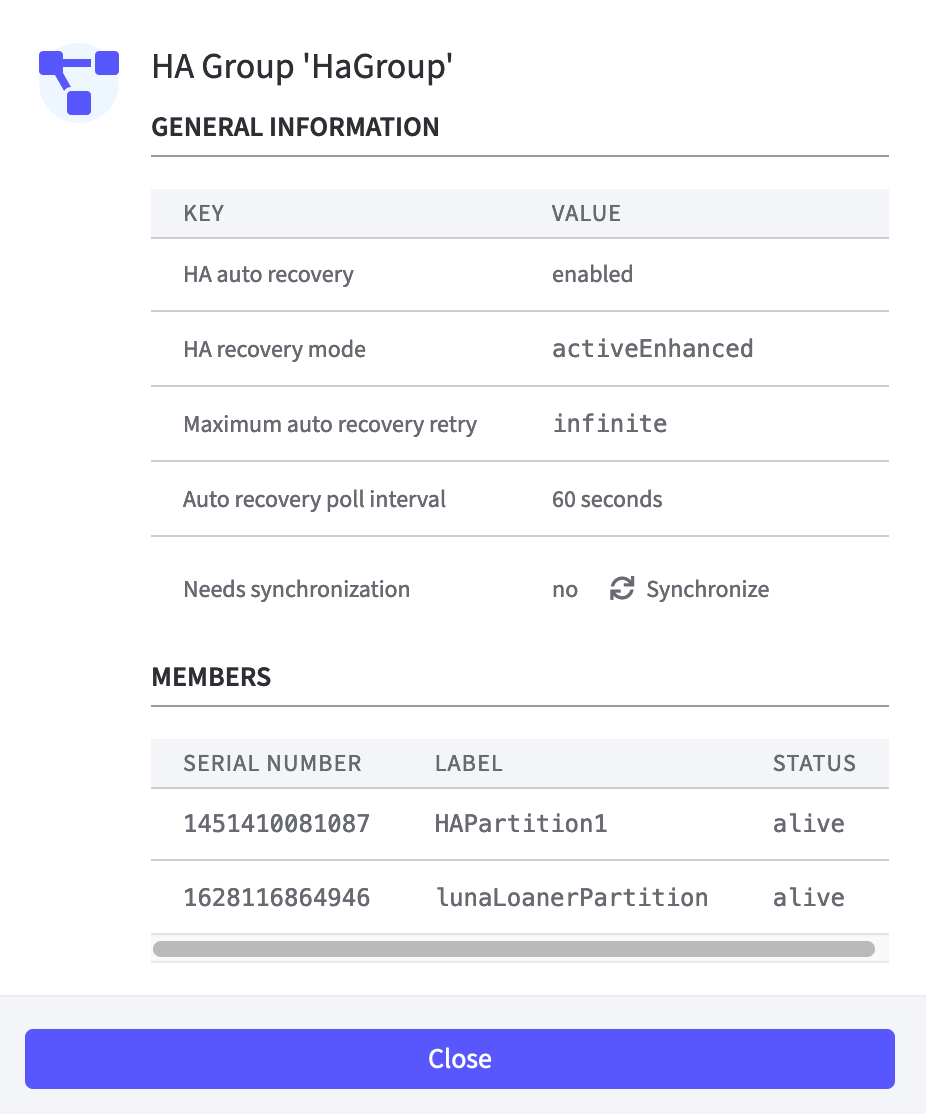

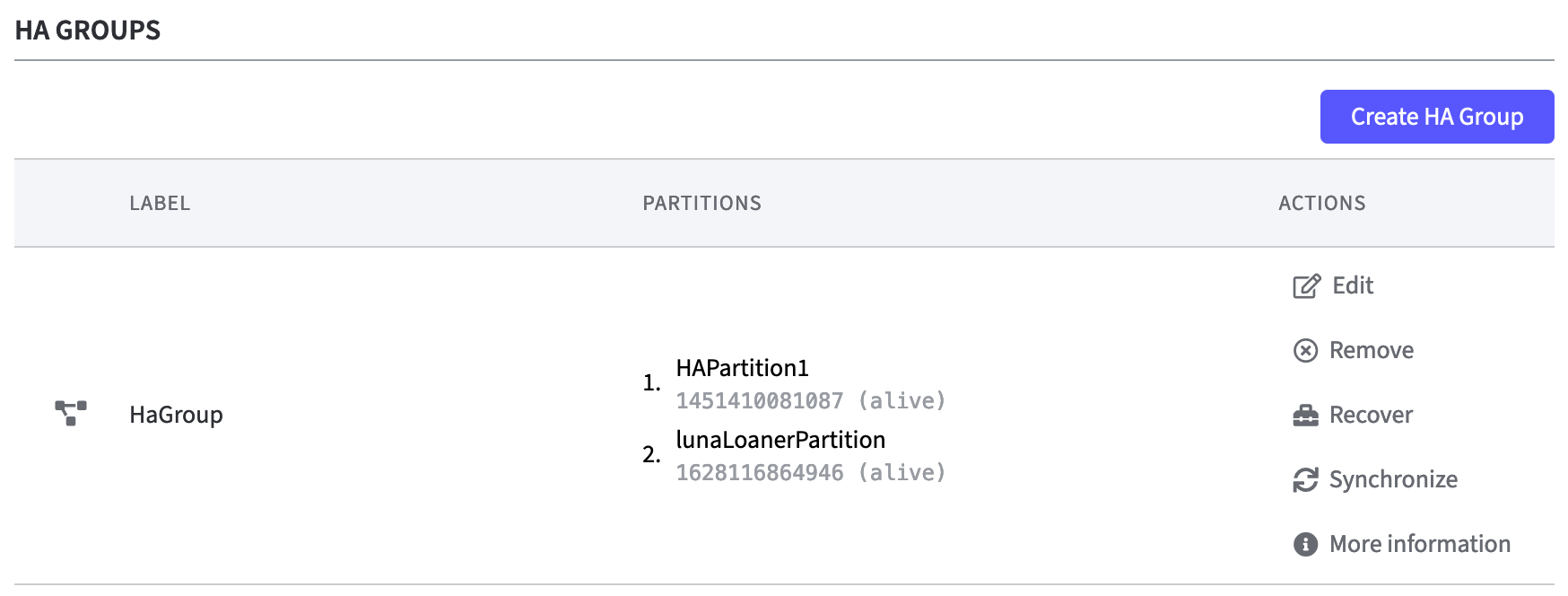

The HA Group is now created.
By using Edit or Remove you can adjust the HSM Devices or the HA Group any time.

In the section Miscellaneous Configurations:

Select the desired authentication protection using the drop down function in Protected Authentication Path
To hide the physical slots and leaving only the HA group slots visible to applications check Use HA Only mode.

Finish with Save HSM Configuration.

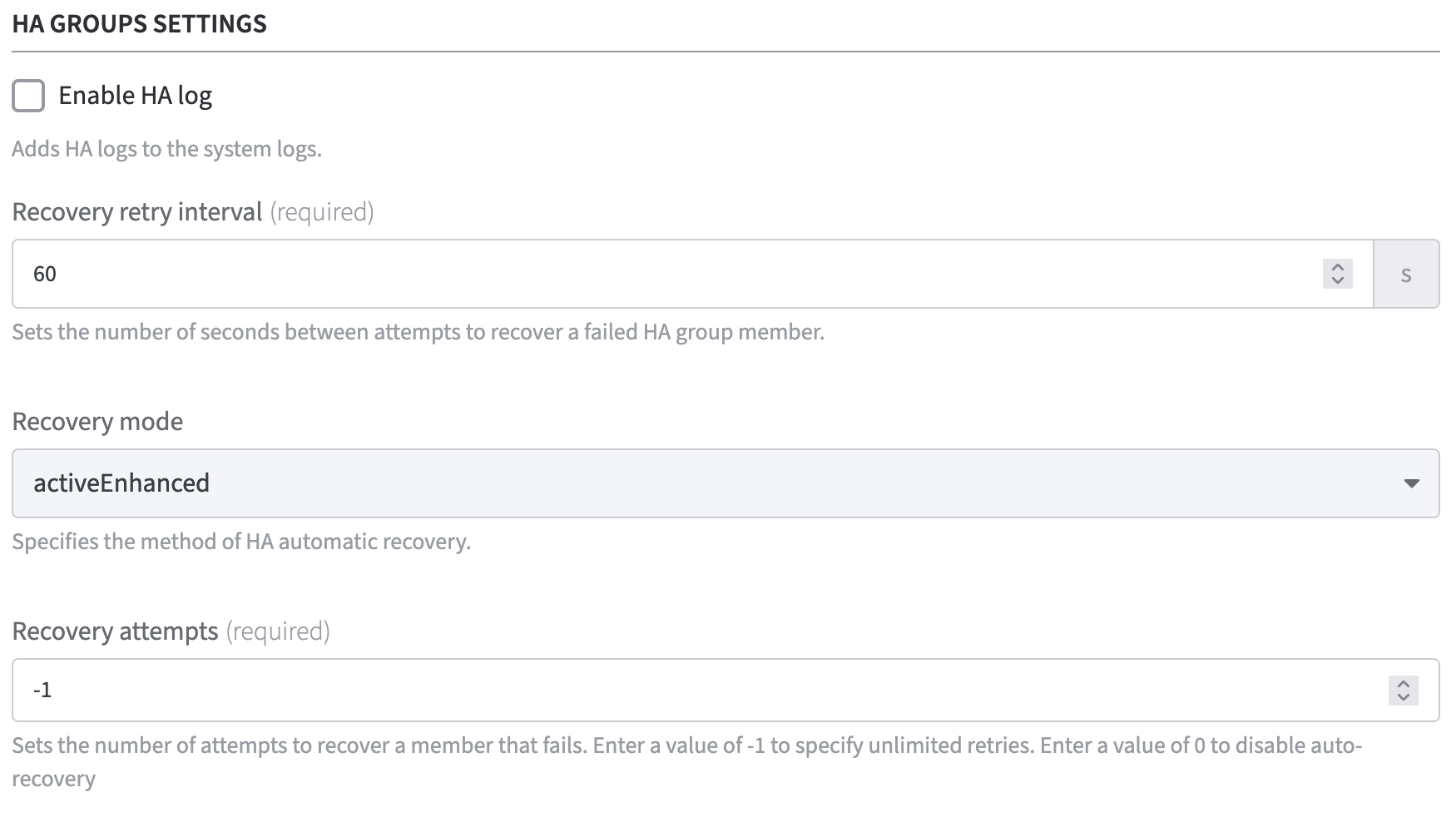

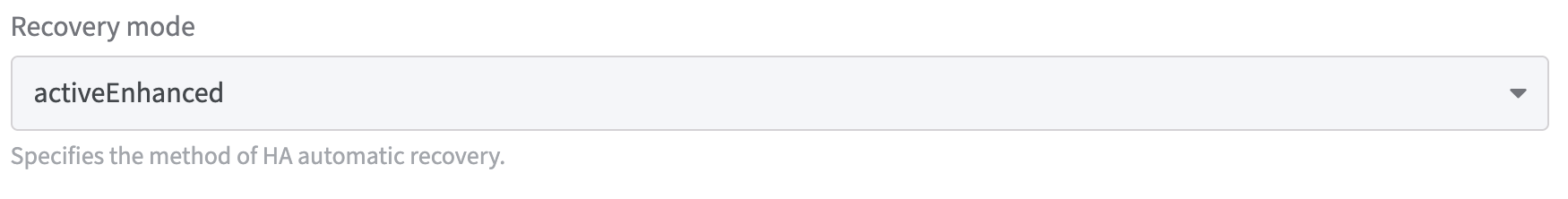

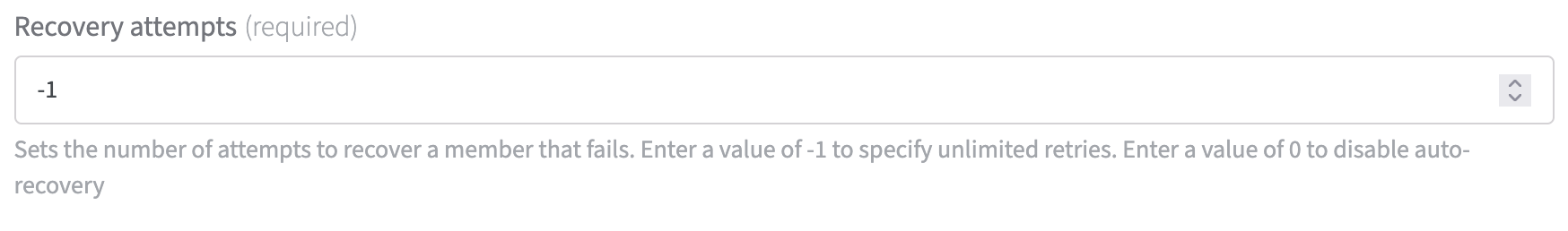

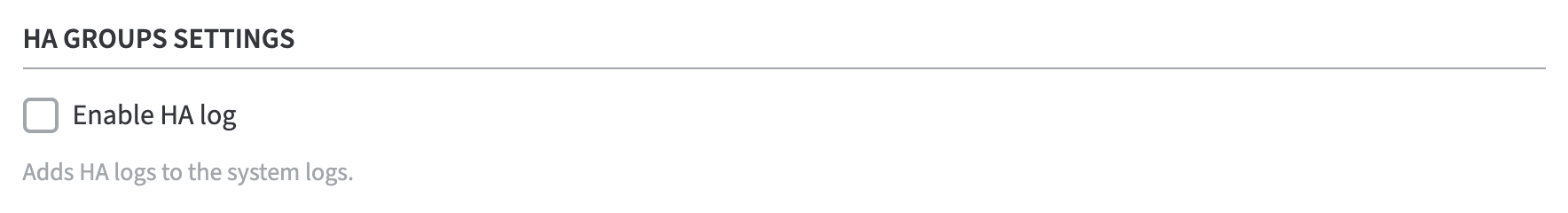

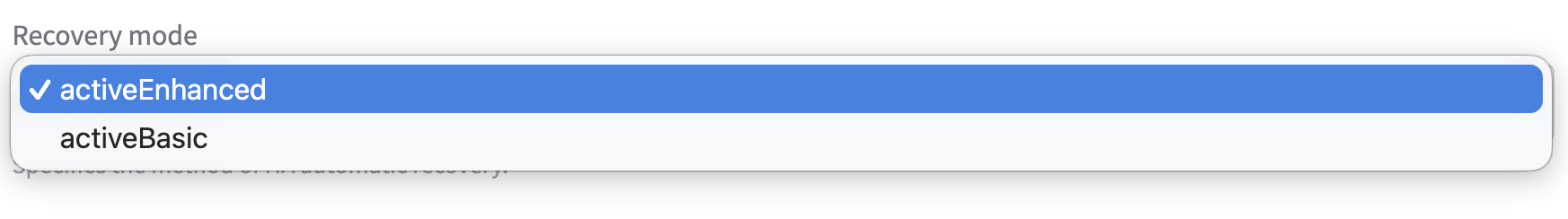

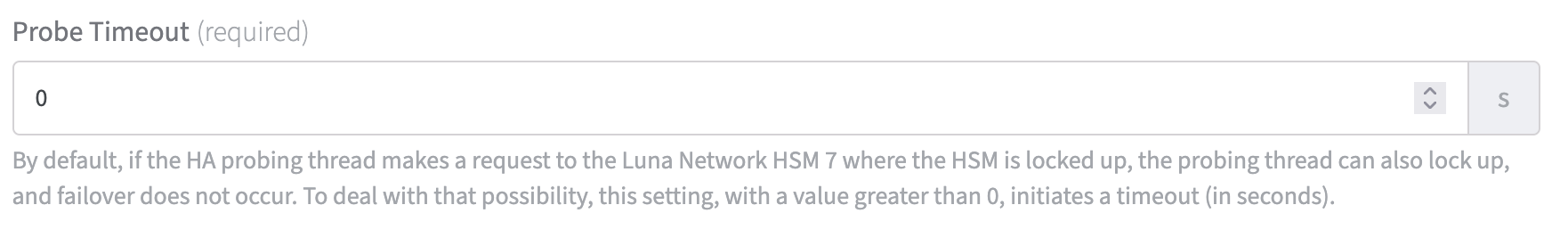

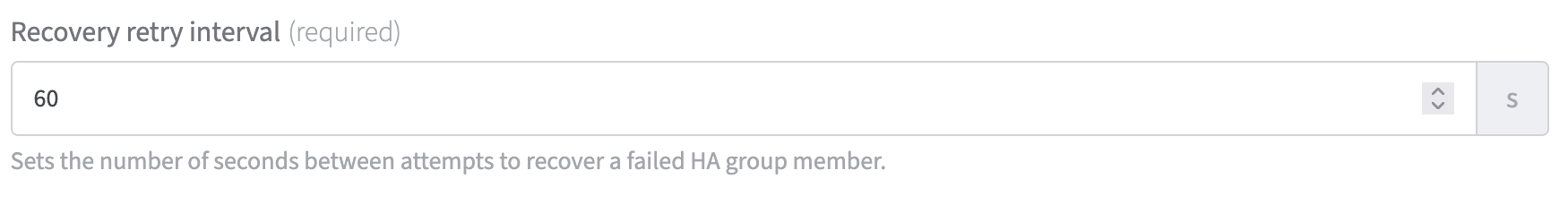

Luna HA Key Synchronization

The Software Appliance will check every 40 seconds if at least one slot is available.

If no slot is found, the driver will shut down and SignServer will no longer be available.

A Key Synchronization recovery of lost HA group members only works for Luna v1 partitions.

Once the SignServer is running again, you can proceed with adding a Crypto Worker.

Add a Crypto Worker in SignServer

To create a Crypto Worker:

In the Overview page of the Software Appliance, click Admin Web for SignServer.
The SignServer page opens.

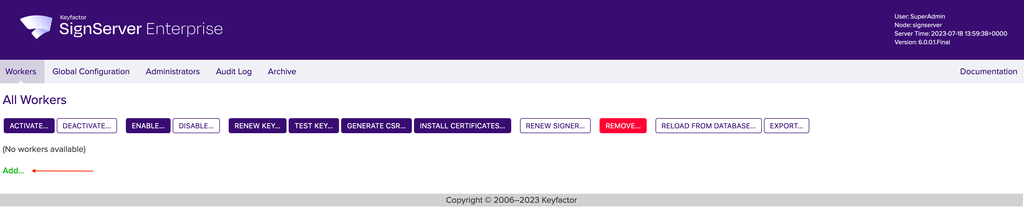

Click Add... to continue.

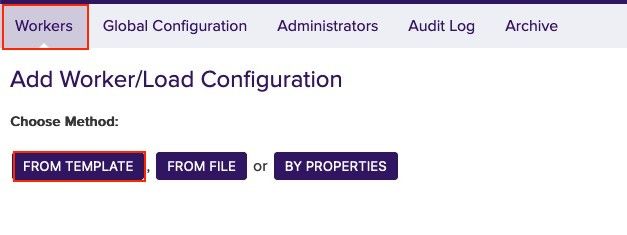

In the top menu, select Worker. You can choose the method you want to use to configure the Worker. In this example we will work with From Template.
Click From Template to continue.

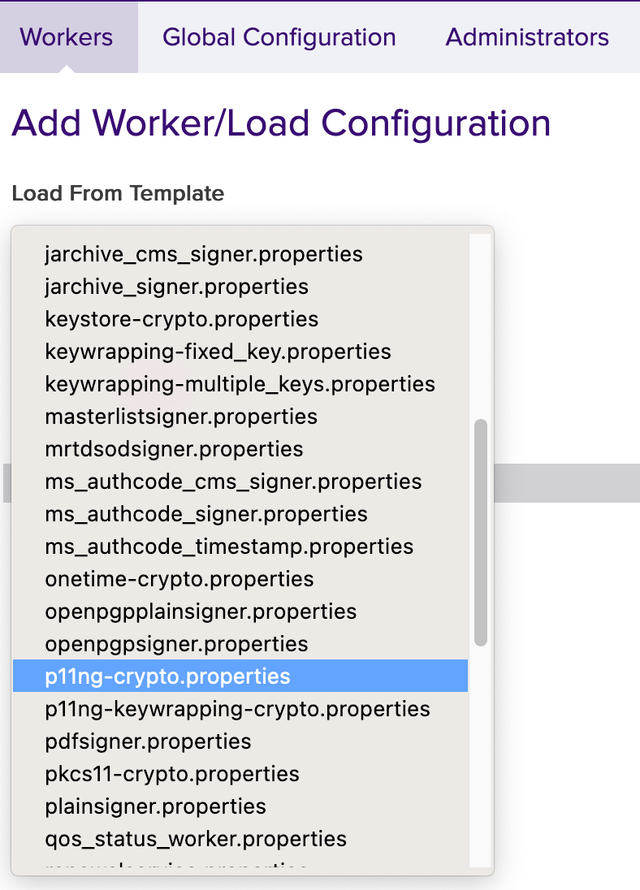

Open the drop-down menu under Load from Template. Here you can select the worker to be configured. In this example we will work with p11ng-crypto.properties.
Click Next to continue.
The Configuration page opens.

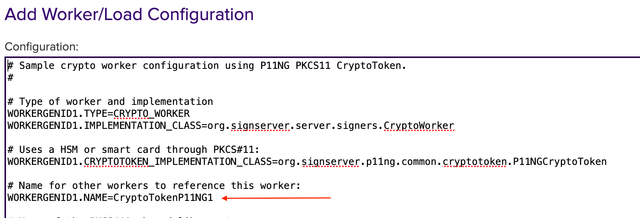

WORKERGENID1.NAME=CryptoTokenP11NG1: this name can be customized (CryptoTokenP11NG1) as desired.

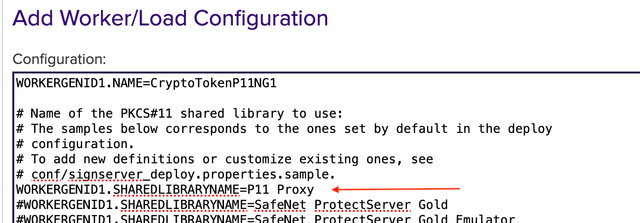

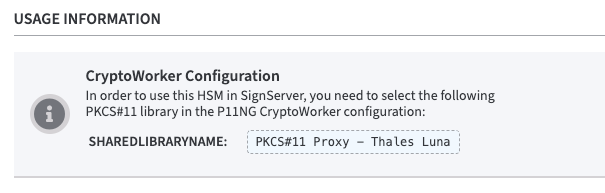

WORKERGENID1.SHAREDLIBRARYNAME=P11 Proxy should be configured as default.

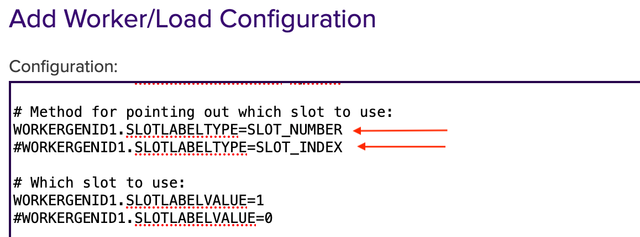

# Method will specifying the slot to use. Here it is important to know if the HSM uses SLOT_NUMBER or SLOT_INDEX. Select the applicable one.
To deselect it, put # in front of it.
To enable it, remove # in front of it.
The # can be replaced for the slot to be used and specify the number of the HSM slot instead.

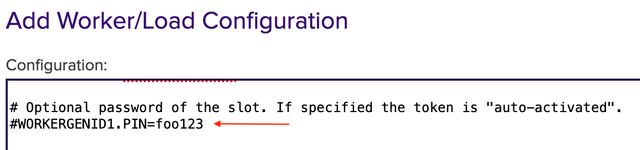

#WORKERGENID1.PIN=foo123 here the password can be enabled or disabled.
To deselect it, put # in front of it.
To enable it, remove # in front of it.

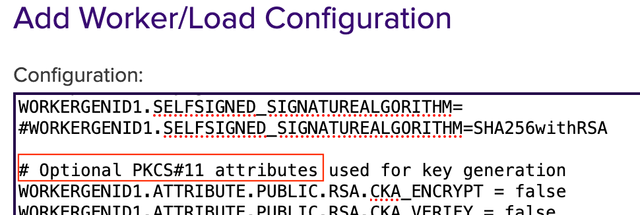

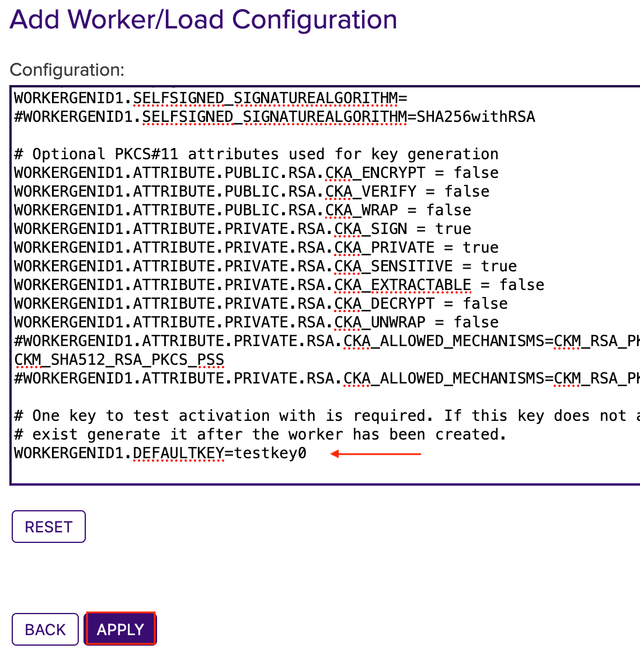

# Optional PKCS#11 attributes is used for key generation, you can select the attributes.
To deselect it, put # in front of it.
To enable it, remove # in front of it.

WORKERGENID1.DEFAULTKEY=testkey0 here you can add an existing key or use the default key.
Click Apply to save the settings.

The token (CryptoTokenP11NG1) is automatically logged in when the PIN is set in the Crypto Worker configuration.

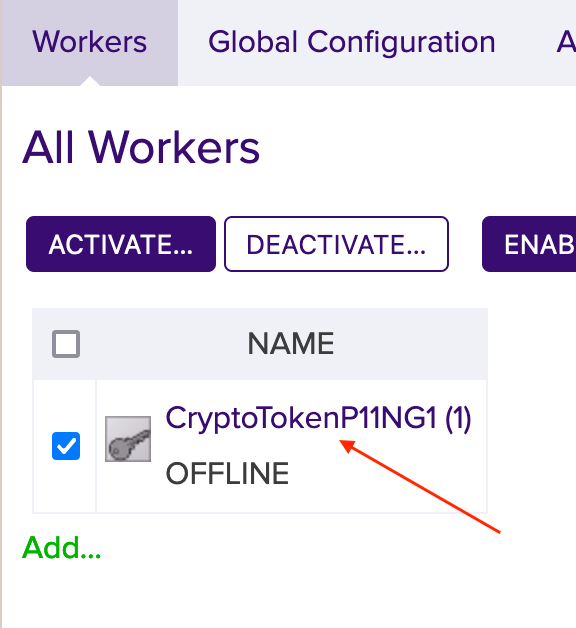

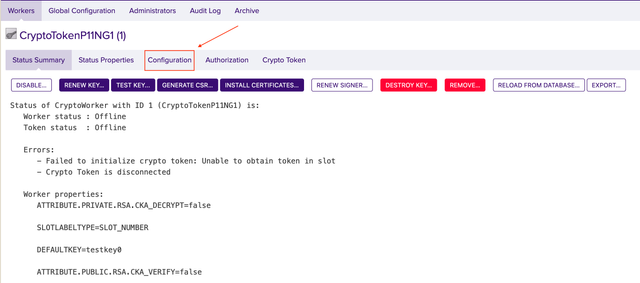

The Worker is not activated yet. Click on the created token and you will see the information about the token in the Status Summary.

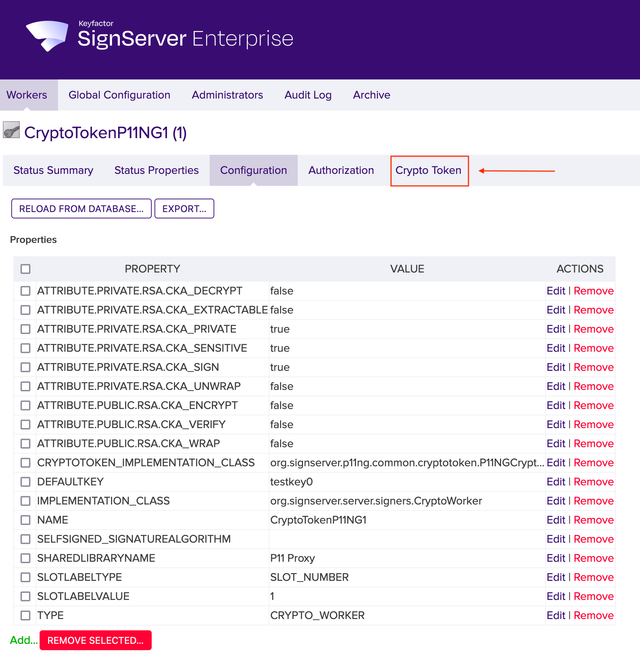

Click the Configuration tab to view the full configuration of the token.

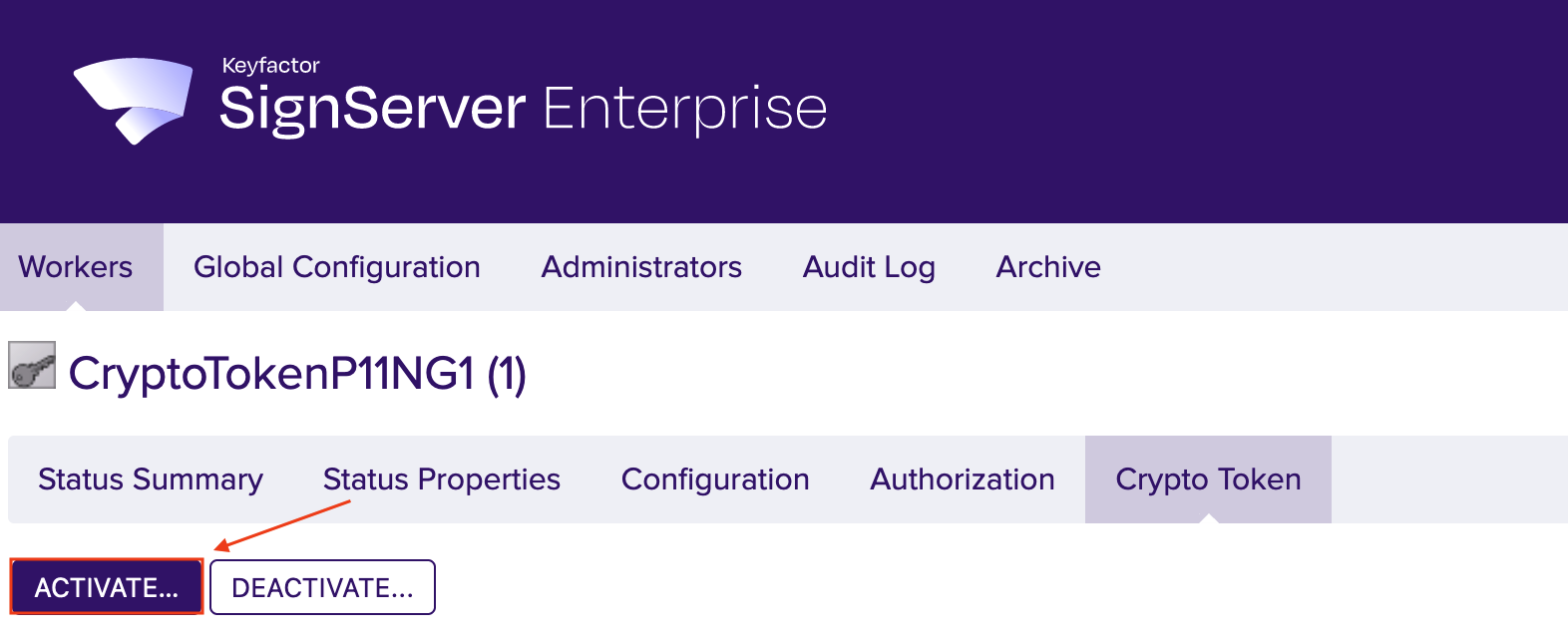

If the configuration meets your needs, click the Crypto Token tab. Edit them if necessary.
Click Activate.

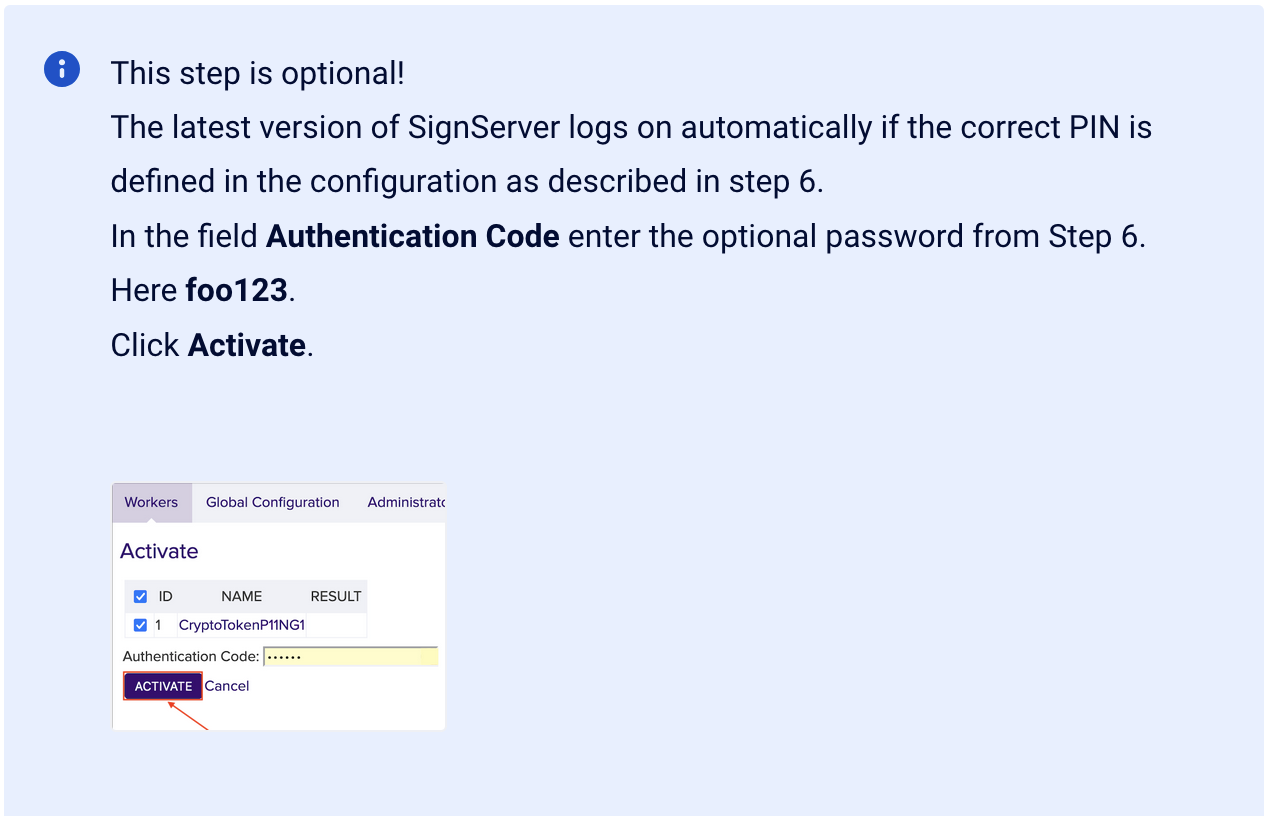

This step is optional!
The latest version of SignServer logs on automatically if the correct PIN is defined in the configuration as described in step 6.
In the field Authentication Code enter the optional password from Step 6. Here foo123.
Click Activate.

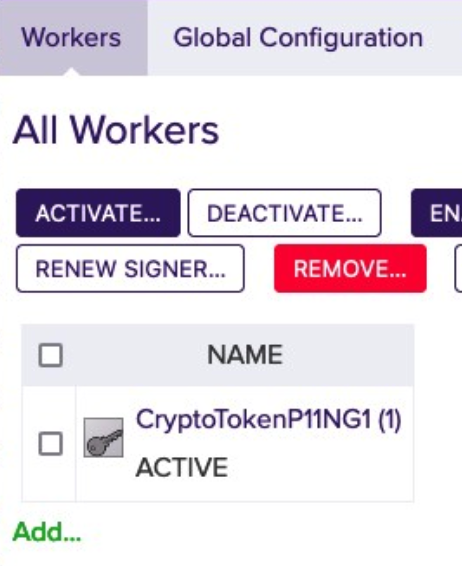

If the default key exists and has been activated, the Crypto Worker is now ACTIVE.

For more information please see Worker Crypto Token Page.

HSM Troubleshooting

In the section HSM Driver Controls the current HSM Driver Status is displayed.
In case of HSM problems, the HSM driver can be restarted via the Restart button.
