End Entity Profiles Fields

The following lists available End Entity Profile fields.

For more information on End Entity Profiles, see the End Entity Profiles Overview and for information about how to manage End Entity Profiles, see End Entity Profile Operations.

Username

The Username value represents an unique identifier for an end entity (user, server, device, etc). During the operation of adding an end entity username can be manually set or automatically generated. Selecting the Auto-generated checkbox in the end entity profile will generate unique values when end entities are added. The Username input field can be used to set a prefix for End Entity username.

Password

Passwords are used when a user (end entity) is requesting a certificate and/or when generating a keystore. Usually this is required, and no default value is configured. When the password is only used during the request procedure, this is called an Enrollment Code in the RA Web, since the password is only valid once and not used to protect the keys. Note that there is no difference between an Enrollment Code and a Password other than the name.

You can use auto-generation of passwords with email notifications to send the user a generated password together with information on how to fetch the certificate.

You can also specify the minimum bit-strength a password is allowed to have in order to make policy compliance easier. The strength of a password is calculated as

floor((the number characters in the password)*log₂(number of allowed password characters))

For non-generated passwords, the number of allowed password characters is estimated to 72.

Example usage:

Password: "foobar123" (9 characters)
Allowed characters: a-z, A-Z, 0-9, 22 additional printable characters (72 in total)
Password strength / char: log2(72) = 6.17
Password strength: floor(6.17 * 9) = floor(55.53) = 55 bits

Setting this value to 55 will require the RA admin to set a 9 character password or longer.

Batch generation (clear text pwd storage)

Enabling this setting stores the password as an encrypted value in the database. When this setting is disabled, the password is stored as a hash created with bcrypt in the database. The “clear text” implies that it is for the “batch generation” process to be able to use the password when creating a PKCS#12 file by using this password as the encryption password protecting the private key.

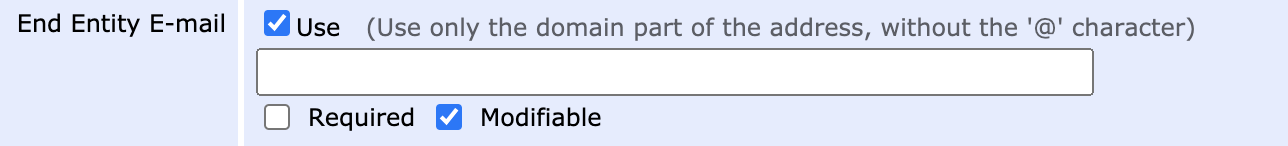

End Entity E-Mail

By selecting Use, enrolling end entities will be able to specify their e-mail, while the text field in the end entity profile allows administrators to provide a default domain. Selecting the End Entity E-Mail field Required option will require that all enrolling end entities specify an e-mail. Selecting Modifiable allows enrolling end entities to modify the e-mail domain while clearing the option binds the end entities to that domain only.

Profile Description

Use the Profile Description field to give the End Entity Profile a freeform description. The description you specify will be displayed in the RA Web Make New Request page (Enroll > Make New Request) next to the chosen Certificate Type.

Subject DN Fields

For information about Subject Distinguished Names in general, naming rules and examples, see Subject Distinguished Names.

Subject DN fields define which DN components should be present for an end entity. If the System Configuration option Enable End Entity Profile Limitations is enabled, this restricts the values that can be used when adding or editing an end entity using all interfaces, be it web GUI, web service, CMP or something else. If you define values as required and non-modifiable, you can specify one or more values. If you specify multiple values separated by ';', the admin in the Web GUI will get a drop-down list menu to select from.

EJBCA does not by default restrict the lengths of DN fields. Some organizations don't, for various reasons, want to follow the limits defined in RFC5280 Appendix A.1 (Upper Bounds).

You can configure length limits by using regexp validation as described below, with a length limit. An example length limit allowing all characters, but maximum length of 10 characters could be "^.{1,10}$".

In the Validation field, you may restrict the allowed input, using a regular expression (regex). EJBCA uses Java Pattern syntax, which is similar to the Perl regex syntax. Matching is case sensitive by default, but this can be changed by adding (?i) in front of the regex. Here are some examples:

[0-9]+ allows digits only
[0-9A-Za-z]+ allows digits, English letters only, no spaces
[0-9A-Za-z ]+ allows digits, English letters and spaces
.+@.+ allows strings containing "@", for example e-mail addresses
[a-zA-Z0-9+._-]+@[a-zA-Z0-9.-]+ allows e-mail addresses with English characters only
[a-zA-Z0-9+._-]+@yourdomain\.com allows only e-mails from a specific domain
[a-zA-Z0-9._-]+\.yourdomain\.com allows only subdomains of yourdomain.com (but not yourdomain.com itself or wildcard (*))
([a-zA-Z0-9._-]+\.)?yourdomain\.com allows yourdomain.com with or without a subdomain, and no wildcard (*)

An example regexp to validate domain names is:

CODE

^(\*.)?(((?!-))(xn--)?[a-z0-9-]{0,61}[a-z0-9]{1,1}\.)*(xn--)?([a-z0-9\-]{1,61}|[a-z0-9-]{1,30}\.[a-z]{2,})$

When having several fields of a certain type with mixed required and not required fields, some special handling might be needed when adding users via the Web Service API. For example, if you have:

The first OU field is required (Bar1) and not modifiable.
The next 3 OU fields are modifiable only (not required).
The last OU is required (Bar1) and not modifiable.

Then, if adding an end entity with DN "CN=Foo,OU=Bar1,OU=Bar2" will result in an error like the following:

CODE

org.ejbca.core.model.ra.raadmin.EndEntityProfileValidationException: Subject DN field 'ORGANIZATIONALUNIT' must exist.

This is because EJBCA cannot keep track of which fields you mean to set, if it is one of the required or non-required. To help EJBCA determine this you can specify the non-required OU fields with empty values, "CN=Foo,OU=Bar1,OU=,OU=,OU=,OU=Bar2".

These characters are forbidden by default in the database: '\n', '\r', ';', '!', '\0', '%', '`', '?', '$', '~' and can not be used in the subject DN filed value.

The GUI have additional, client side restrictions using a regexp: /[^\u0041-\u005a\u0061-\u007a\u00a1-\ud7ff\ue000-\uffff_ 0-9@.\&*\,-:\/\?\'\=#()|]/g

Also, note that it is configurable in cesecore.properties which characters are forbidden in the database.

DN Fields with special considerations

There are a few particular subject DN field that deserves extra information.

postalAddress

PostalAddress is not encoded as a string but is an ASN.1 sequence. If you only enter the value as a string it will be encoded as a simple UTF8String, which is invalid. You need to enter it as a hex encoded ASN.1 DirectoryString. This is done by hex encoding the ASN.1 object and pre-pending it with #, i.e. #30...

uniqueIdentifier

uniqueIdentifier is not encoded as a string but is an ASN.1 BITString. If you only enter the value as a string it will be encoded as a simple UTF8String, which is invalid according to the specification. At the same time UTF8String is the only current use case we know of. If you want to encode it as a BITString you need to enter it as a hex encoded ASN.1 DirectoryString. This is done by hex encoding the ASN.1 object and pre-pending it with #, i.e. #30...

We strongly recommend against using this DN field, because it is very rarely used and the encoding makes it likely that there will be interoperability issues unless you strictly control the complete eco system where this is parsed and used.

CertificationID

CertificationID is specified in BSI TR 03145-5. It is specified as a Sequence with a version number and a PrintableString text field of exactly 18 characters. It must be of the form BSI-K-TR-"four digit number"-"year as four digit". EJBCA have built in support for this DN field and you only have to enter the 18 character string in a DN like "CN=Some Common Name, CertificationID=BSI-K-TR-1234-2023,C=DE" in order for it to be correctly encoded.

In order to prevent users from inserting invalid CertifictionID's, either with the wrong length or of the wrong format, we advice that you add a regexp validator to the End Entity Profile field.

Subject Alternative Names

Subject alternative names (altNames) are extra naming items that are not fit to have in the Distinguished Name, such as email, dns, ip address etc. There are several standard ones, and the possibility to define special ones, which many companies have done for altNames such as MS UPN, GUID, Krb5PrincipalName.

Subject alternative names can be: rfc822Name=<email>, dNSName=<host name>, uri=<http://host.com/>, ipaddress=<address>, upn=<MS UPN>, guid=<MS globally unique id>, directoryName=<LDAP escaped DN>, krb5principal=<Krb5 principal name>, permanentIdentifier=<Permanent Identifier values>, subjectIdentificationMethod=<Subject Identification Method values or parameters>

The text fields and options for Subject Alternative Names generally work in a similar way as the Subject DN fields.

It is not possible to specify more than 100 fields in the subject alternative name.

However, if needed you can specify more than 100 fields in the CSR and then enable extension override in the certificate profile.

RFC 822 Name (e-mail address)

Configuration of email fields can be complex since there are two places in the End Entity profile where email addresses can be configured:

Email field: Registers a user email in the EJBCA database (used for email notifications and so on).
Subject alternative name field: Adds an email address to the SubjectAlternativeName field in an issued certificate.

These two fields can be the same but do not have to be, which is why configuration can be complex if you configure them individually.

For the Subject alternative name field there are different options:

Use entity e-mail field selected: Results in a single entry for End Entity E-mail when adding a new end entity.

Required: If selected, the End Entity E-mail field must be specified and cannot be omitted.

Use entity e-mail field cleared: Results in a separate input field for RFC 822 Name.

Required: If selected, the RFC 822 Name field must be specified and cannot be omitted.

- Modifiable: If selected, the RA administrator can specify an email address.
  If a domain (foo.com) is set in the profile, the RA administrator can specify the first part of the email, i.e. before @ (since the domain is pre-filled), but also the domain part can be modified.
  If Modifiable is cleared, a full, fixed, email address must be provided in the profile, and all end entities will be registered with this email address (the profile can be configured with only domain part, but filling an email address by the RA administrator later will not work).

DNS Name

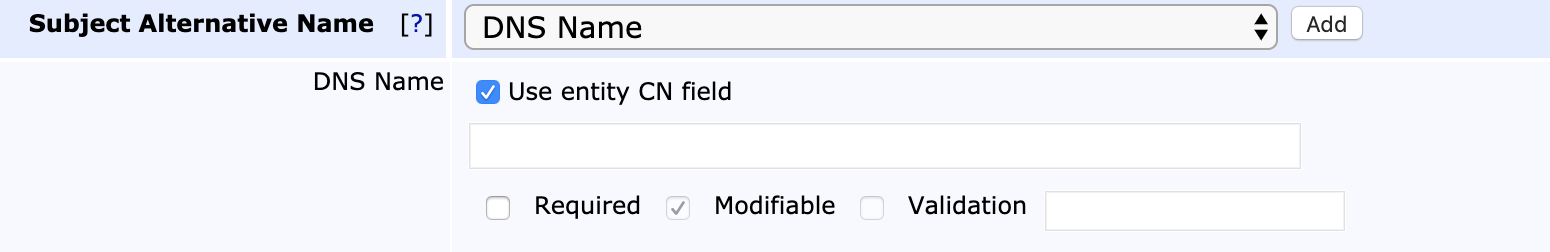

A domain name. If the Use entity CN field is selected, then the value from the Common Name attribute in Subject DN is also used for the DNS Name field.

IP address

An IP address can be either an IPv4 address or an IPv6 address.

Example IPv4: 192.168.2.54

Example IPv6: 2001:DB8:85A3:0:0:8A2E:370:7334

Krb5 Principal Name

The Krb5 principal name is in the format "principal1/principal2@realm" and should be entered as such in the field.

For example user@PRIMEKEY.COM for a normal user in the realm PRIMEKEY.COM or krbtgt/PRIMEKEY.COM@PRIMEKEY.COM for a KDC.

Permanent Identifier (RFC 4043)

The Permanent Identifier is of the form "identifierValue/assigner" where identifierValue is an optional string and assigner is an optional OID and should be entered as such in the field. If the identifierValue string contains a '/' (slash) character, it should be escaped with a back slash ("\/").

Examples:

CODE

abc0123/1.2.3.4
abc0123/
/1.2.3.4
/

Subject Identification Method (RFC 4683)

The SIM (Subject Identification Method) value is stored in the form "HashAlgorithmOid::AuthorityRandom::PEPSI" where PEPSI (Privacy-Enhanced Protected Subject Information) is built by the two times hashed concatenation of the user chosen password, the authority random value, the SII type and the SII itself. This value is calculated after adding or editing an end entity. Therefore the SIM needs to be entered as its parameters of the form 'HashAlgorithmOid::UserChosenPassword::SIIType::SIIValue', where the SIIType is the type of SII (Sensitive Identification Information). SIIType is an OID as specified in RFC4683.

The password should be a string password, but only containing printable characters.

Examples for input parameters with SHA-256 hash algorithm and calculated SIM (is done after saving an end entity with SIM parameters):

CODE

2.16.840.1.101.3.4.2.1::MoreThan8CharsOnlyPrinable::1.2.410.200004.10.1.1.10.1::ABC1234567
-> is processed to (different value every time due to included randomness)
2.16.840.1.101.3.4.2.1::CB3AE7FBFFFD9C85A3FB234E51FFFD2190B1F8F161C0A2873B998EFAC067B03A::6D9E6264DDBD0FC997B9B40524247C8BC319D02A583F4B499DD3ECAF06C786DF

Federal Agency Smart Credential Number (FASC-N)

FASC-N is an OtherName defined for PIV certificates in FIPS 201-2. It is encoded as an Octet String and therefore the altName in EJBCA is entered as Hex encoded octets. A subjectAltName string could for example look like:

CODE

rfc822Name=email@example.com, fascN=0419d23210d8210c2c1a843085a16858300842108608823210c3e1

Since the field is limited to 25 bytes, a suggested validation regex would be [0-9a-f]{1,50}.

XmppAddr and Service Name

XMPP services require two certificate types, XMPP Server, and XMPP Client certificates. The XMPP Client certificate requires the following Subject Alternative Names (OtherNames in RFC5280):

Service Name (RFC4985)
XMPP Address (RFC6120)

These altNames can be entered using the GUI or the CLI, and you can use them individually or together. A subjectAltName string could, for example, look like:

CODE

xmppAddr=john.doe@ejbca.org, srvName=_Service.Name

Certificate Validity

By setting the Certificate Validity Start Time and End Time you can precisely specify, for a specific end entity, when the certificate will start being valid and when the certificate will cease being valid.

When selecting to use Certificate Validity Start or End time, you will get the possibility to enter these fields when a new end entity is added. You can also specify a default value for the end entity profile. Different formats of specifying the validity time are provided as examples in the end entity profile page.

This function requires the 'Allow validity override' function in the Certificate Profile.

Revocation Reason to set After Certificate Issuance

Using this option you can define that when adding a new user, the revocation state of an issued certificate can be set immediately to something else than 'Active'.

This is useful if you want to issue certificates that are 'On hold' for users. After the user receives the certificate, they might be required to perform some action in order to have their certificate activated.

Most useful when used in combination with OCSP since it will require, in practice, instant revocation checking.

When enabling this option in the profile, a corresponding selection will be available when adding new users. The user data corresponding to this option is an ExtendedInformation attribute, ExtendedInformation.CUSTOM_REVOCATIONREASON.

E-Mail Notifications

EJBCA uses a mail service in the application server to send e-mails. You can configure what data to include in the e-mail notifications and events to trigger the notifications to be sent. For more information, see E-mail Notifications.

Reverse Subject DN Alt Name Checks

This checkbox is not recommended to be used in normal operations. When using the External RA and more than one DN field type is set in the profile, for example one optional OU and one required OU, it might be needed to check this checkbox for the profile validation to work.

Only use it in such a special case if nothing else works. This option may be removed in the future.

Allow merge DN across all interfaces

If the end entity profile information must be used to define default values when you create a user, the flag Allow merge DN across all interfaces must be selected in the end entity profile. When this option is enabled, and an End Entity is created or updated, the DN passed will be merged with the default values from the End Entity Profile. This setting acts across all protocols (as of EJBCA 7.9.0) and thus functions for any Web Service, CA UI, RA UI, REST interface, etc. method, and protocols like ACME, EST, CMP, etc. For example, if the End Entity Profile has default Values for O=PrimeKey and C=SE, and the WS editUser call sets user DN to CN=Donald Duck, the DN of the End Entity added to EJBCA will be CN=Donald Duck,O=PrimeKey,C=SE.

This is a complex feature, so there will be some limitations. The feature handles multiple fields of a certain type, for example OU, and you should limit the usage to best practice fields, i.e. use a CN, never use DN Email (as you should not in any case), etc. Verify behavior before usage. Some typical use cases:

End Entity profile with default value: OU=OrgUnit, add end entity (with WS) with subject DN CN=Username,O=Org,C=SE → resulting end entity DN is CN=Username,OU=OrgUnit,O=Org,C=SE
End Entity profile with default value: OU=OrgUnit,OU=OrgUnit2, add end entity (with WS) with subject DN CN=Username,O=Org,C=SE → resulting end entity DN is CN=Username,OU=OrgUnit,OU=OrgUnit2,O=Org,C=SE
End Entity profile with default value: OU=OrgUnit,O=Org2,C=SE add end entity (with WS) with subject DN CN=Username → resulting end entity DN is CN=Username,OU=OrgUnit,O=Org2,C=SE
End Entity profile with default value: OU=Org1,OU=Org2,OU=,OU=,C=SE add end entity (with WS) with subject DN CN=Username,OU=Org3,OU=Org4 → resulting end entity DN is CN=Username,OU=Org1,OU=Org2,OU=Org3,OU=Org4,C=SE

The Allow merge DN across all interfaces setting inherits the configuration of Allow merge DN for Web Services from older EJBCA (before EJBCA 7.9.0). For more information, see Configuring Web Services Behavior.

Follow policy option from End Entity profile (CA's policy)

To enable the option of merging values from the request with those predefined in the end entity profile, enable the Follow policy option from End Entity profile (CA's policy) setting. Note that this is a MS Auto-enrollment (MSAE) only feature.

To allow merging values when certificate templates are configured with Supply in the request for the Subject DN in MSAE, the Allow Subject DN Override by CSR together with the Follow the policy set in CA's End Entity profile used by the associated MSAE alias options must also be enabled in the associated certificate profile, see Certificate Profile Fields.

Allow multi-value RDNs

This setting enables usage of multi-value RDNs as described in Subject Distinguished Names.

Using multi-value RDNs can complicate your PKI usage and should be avoided if possible. Only enable this option if you are certain that you really need it.

Maximum Number of Failed Login Attempts

By choosing a maximum number of failed login attempts the status of a user will change to GENERATED in case a wrong password is entered more than the specified number of times. Note that what is called a "password" in the admin web is often called an "enrollment code" in the RA Web. The Use option must be selected for the end entities to use this feature. If Modifiable is selected, the specified number can be changed for a particular end entity at the creation time of the end entity or later by editing it.

Custom Certificate Extension Data

By checking Use for custom certificate extension data in the end entity profile, a text area is provided when adding or editing an end entity for supplying custom certificate extension data.

Extension data is entered in the text area in the same format as for Java properties files, that is typically, key=value with one entry on each line. The extension data accepted and/or required depends on the custom extensions chosen in the certificate profile as 'Used Custom Certificate Extensions' and how these are configured.

For example, custom extensions of type BasicCertificateExtension configured with the property dynamic=true accept custom extension data in the form 'OID.value=value' where OID is the OID of the configured extension and value is the value to put in the extension in the configured encoding.

CODE

1.2.3.4.value = 65486c6c206f6f776c720064
1.5.6.value = Hello world

For more information on available extensions and configuration, see Custom Certificate Extensions.

The following displays an example configuration of a certificate extension taking dynamic value in RAW hax encoded format:

CODE

OID: 1.2.3.4
Display Name: SingleExtension
Class Path: org.cesecore.certificates.certificate.certextensions.BasicCertificateExtension
Critical: false
Properties:
  dynamic=true
  encoding=RAW

If the request (Extension Data) contains extensions that cannot match any configured Custom Certificate Extension in EJBCA, issuance will be rejected.

ETSI PSD2 QC Statement

If PSD2 QC Statements are used, selecting the ETSI PSD2 QC Statement option allows creation of end entities containing PSD2 qualified certificate statement. In addition, this setting will allow input of NCAName, NCAId, and TPP Roles.

For more information, see PSD2 Qualified Certificate Statement in Certificate Profile Fields.

CA/B Forum Organization Identifier

The CA/B Forum Organization Identifier must also be enabled in the certificate profile, for the field to show up in issued certificates. In the end entity profile, selecting this field enables input of the data as specified in the CA/B Forum Guidelines For The Issuance And Management Of Extended Validation Certificates, section 9.8.2. It will end up as a certificate extension

CODE

id-CABFOrganizationIdentifier OBJECT IDENTIFIER ::= { joint-iso-itu-t(2) international-organizations(23) ca-browser-forum(140) certificate-extensions(3) cabf-organization-identifier(1) }

ext-CABFOrganizationIdentifier EXTENSION ::= { SYNTAX CABFOrganizationIdentifier IDENTIFIED BY id-CABFOrganizationIdentifier }

CABFOrganizationIdentifier ::= SEQUENCE {
  registrationSchemeIdentifier PrintableString (SIZE(3)),
  registrationCountry PrintableString (SIZE(2)),
  registrationStateOrProvince [0] IMPLICIT PrintableString OPTIONAL (SIZE(0..128)),
  registrationReference UTF8String
}

Examples:

NTRGB-12345678 (NTR scheme, Great Britain, Unique Identifier at Country level is 12345678)
NTRUS+CA-12345678 (NTR Scheme, United States - California, Unique identifier at State level is 12345678)
VATDE-123456789 (VAT Scheme, Germany, Unique Identifier at Country Level is 12345678)
PSDBE-NBB-1234.567.890 (PSD Scheme, Belgium, NCA's identifier is NBB, Subject Unique Identifier assigned by the NCA is 1234.567.890)

Number of Allowed Requests

By selecting Use for number of allowed requests you enable the possibility to request several certificates in a row, without the user status being set to generated. Normally after a username/password pair has been used to generate a certificate, the users status is set from 'new' to 'generated'. This makes the password invalid, thus implementing a one-time password scheme. By selecting a number higher than one for 'number of allowed requests' the user can request several certificates before the status is set to 'generated'. This makes it possible to enroll for several certificates directly, for example one authentication and one signature certificate.

The 'number of allowed requests' in the End Entity Profile will set the default, and maximum value available when adding or editing a new end entity. When editing an existing end entity and setting the status to new, from a non-new status, the 'number of allowed requests' will automatically be altered to the default value for the profile. If the end entity profile used no longer uses the 'number of allowed requests' the request counter for the end entity will be removed when the end entity is edited.

Allow Renewal Before Expiration

Normally, EJBCA will only allow the issuance of an end entity when it is in NEW state. With Allow Renewal Before Expiration enabled, certificates may be renewed even when in GENERATED state, when they are about to expire. The text field controls the number of days (measured as 24-hour periods, not calendar days) before expiration that renewal should be allowed.

This option will also cause end entity passwords to be kept indefinitely in the database, to allow for renewal using the password. For that reason, it is strongly recommended that the option Batch generation (clear text pwd storage) is disabled when Allow Renewal Before Expiration is enabled.

There is an increased risk of password brute force attacks when enabling this feature since users can authenticate with their password even when the end entity is in GENERATED state. We recommend that you enforce strong passwords when using this feature.

If you do not use password authentication at all, we recommend disabling it in the RA UI by disallowing the /ca_functionality/use_username access rule.

Available Tokens

The following lists the different tokens available in EJBCA.

Token	Description
User Generated	The private key is generated by the user and the public key is provided in a CSR (typically in PKCS 10 format). EJBCA delivers a certificate or certificate chain to the user.
P12 file	The keypair is generated by EJBCA and the private key, the user's certificate and the certificate chain are delivered in a P12 file, also known as PFX file on Windows (see PKCS 12 v1.1 - RFC 7292). The private key and the certificates are encrypted using pbeWithSHAAnd3-KeyTripleDES-CBC (since EJBCA 7.5) and protected with the password of the end entity. P12 files work on most systems.
JKS	The keypair is generated by EJBCA and the private key, the user's certificate and the certificate chain are delivered in a JKS file (Java Keystore). The keystore is protected with the password of the end entity. JKS files are mostly used by Java applications, but P12 files should be preferred instead if the application supports them.
PEM	The keypair is generated by EJBCA and the private key, the user's certificate and the certificate chain are delivered in a PEM file (see RFC 7468). The private key is not protected, thus this keystore format should be used with caution. The private key is not protected with a password when using PEM as token type.
BCFKS	The keypair is generated by EJBCA and the private key, the user's certificate and the certificate chain are delivered in a P12 file. The BCFKS keystore is designed to be FIPS compliant and uses PBKDF2 with HMAC SHA512 for password to key conversion and AES CCM for encryption. The keystore uses PKCS 12 format and is supported by all applications using Bouncy Castle as security provider.

Plugin Field Restrictions

Administrators can develop further custom user field restrictions using the FieldValidator as described in Modifying EJBCA.

Subject Name Log Redaction

Enable the Redact Subject Name from logs option in the End Entity Profile to redact the Subject Distinguished Name (SubjectDN) and Subject Alternate Name (SAN) of the end entities from the logs. It is also recommended to enable Redact Subject Name from logs under System Configuration>Basic Configurations, see Subject Name Log Redaction.
