Cluster: Check the Cluster

The Cluster page of the Software Appliance provides you with information about the node you are currently on, as well as about all other cluster members.

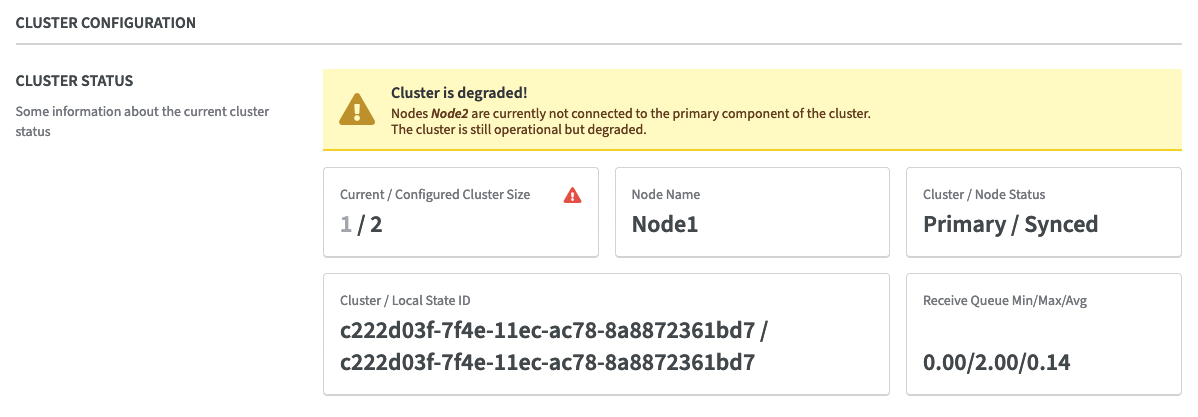

Cluster Status

Here you will find information about the cluster from the perspective of the node to which you are connected:

• the Current and Configured Cluster Size

• the Node Name

• the Node Status of the Cluster

• the Local State ID of the Cluster

• the Received Queue Min/Max/Average


Cluster Members

Here you will find a list of all cluster nodes that are currently configured.
For each node you will find:

• the IP address

• the last transaction ID (LTID)

• and the current status of the node.

The Connectivity status of the node can be one of the following:

• Initializing
  This is the first status when adding the node to the cluster. It lasts until the node has been fully added to the cluster.

• Connecting
  The VPN to the node is established. The database management system has not yet joined the cluster.

• Connected
  The node is part of the cluster and ready to receive data.

• Disconnected
  The node is currently unreachable. There is no VPN connection with the node.
